Basic Split-Supply Preamp Circuits

Basic split-supply preamp circuits using op-amps.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

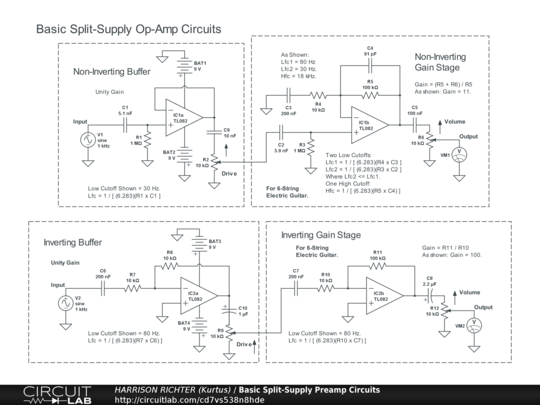

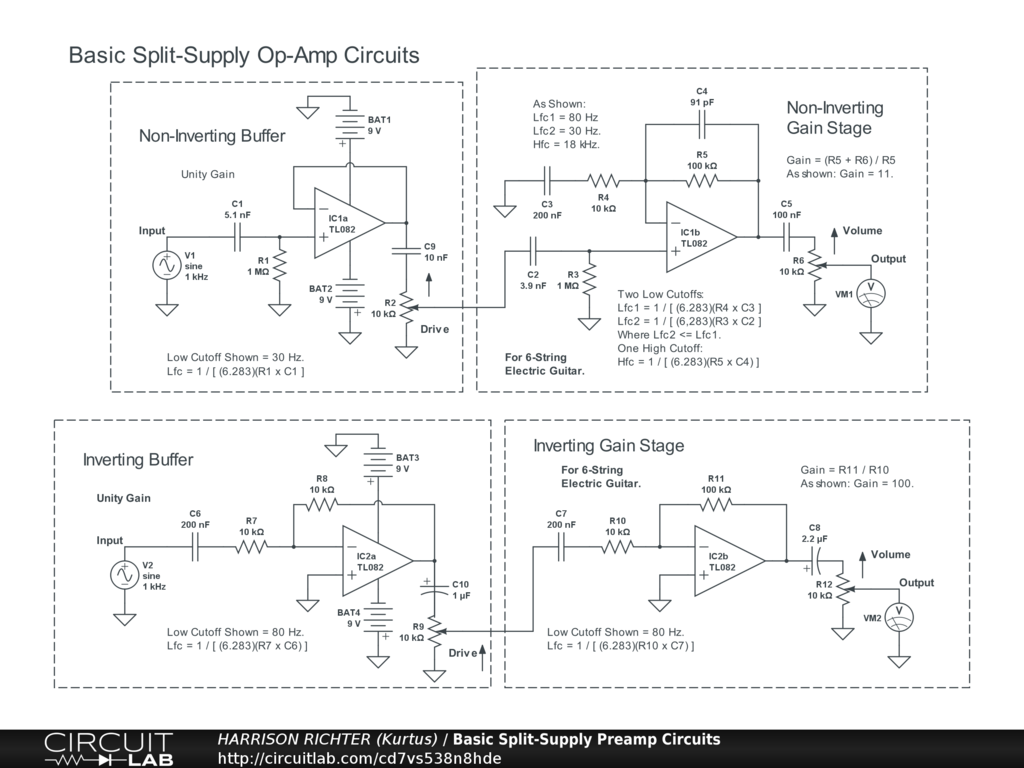

Basic preamp circuits for guitar using dual op-amps. Use as building blocks for more complex circuits.

No comments yet. Be the first!

Only the circuit's creator can access stored revision history.

Basic Split-Supply Preamp Circuits PUBLIC
