Summary

CircuitLab can be used to model some mechanical systems as well.


Description

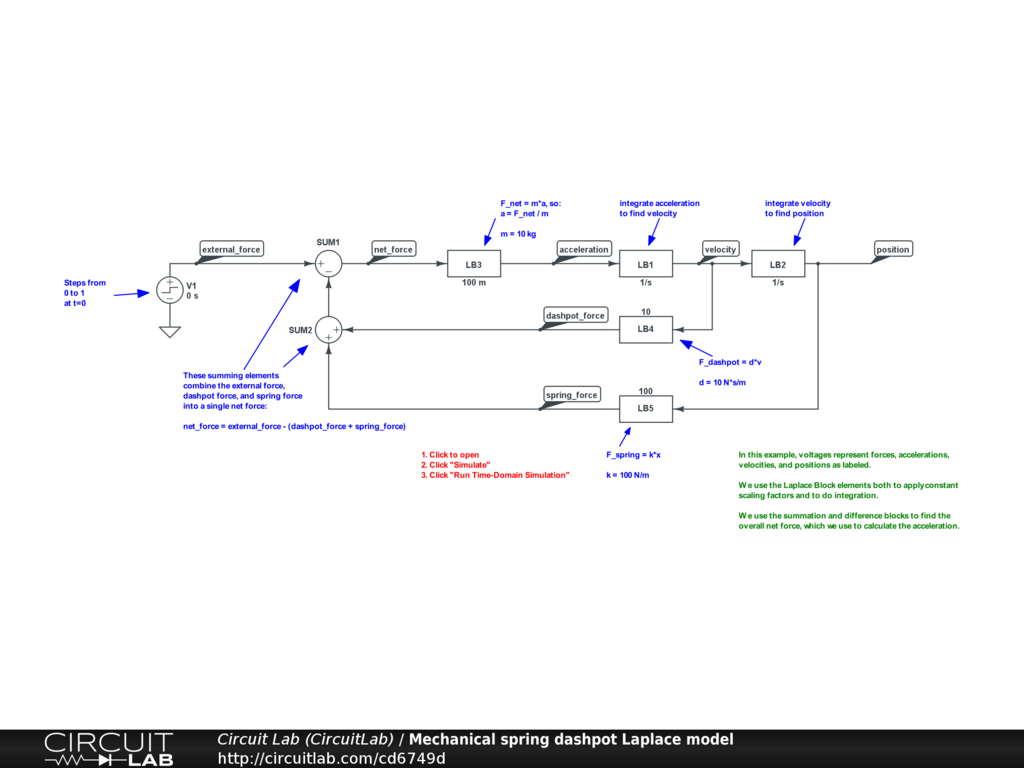

We can simulate the effect of a mass-spring-dashpot system under an external force. The current parameters are m=10 (kg), k=100 (N/m), d=10 (N*s/m). Load it up, run the time simulation, and tweak the spring force and dashpot to see a range of second-order responses!


Comments

WOW. This whole site is amazing. Way to go guys!

by lars
March 02, 2012

Double WOW, back to my early days of classical control theory Tusend tak

by robint
March 20, 2014
