RS-Timbre "FuzzOSus" PUBLIC

Overdrive Circuit with Fuzz and Sustain

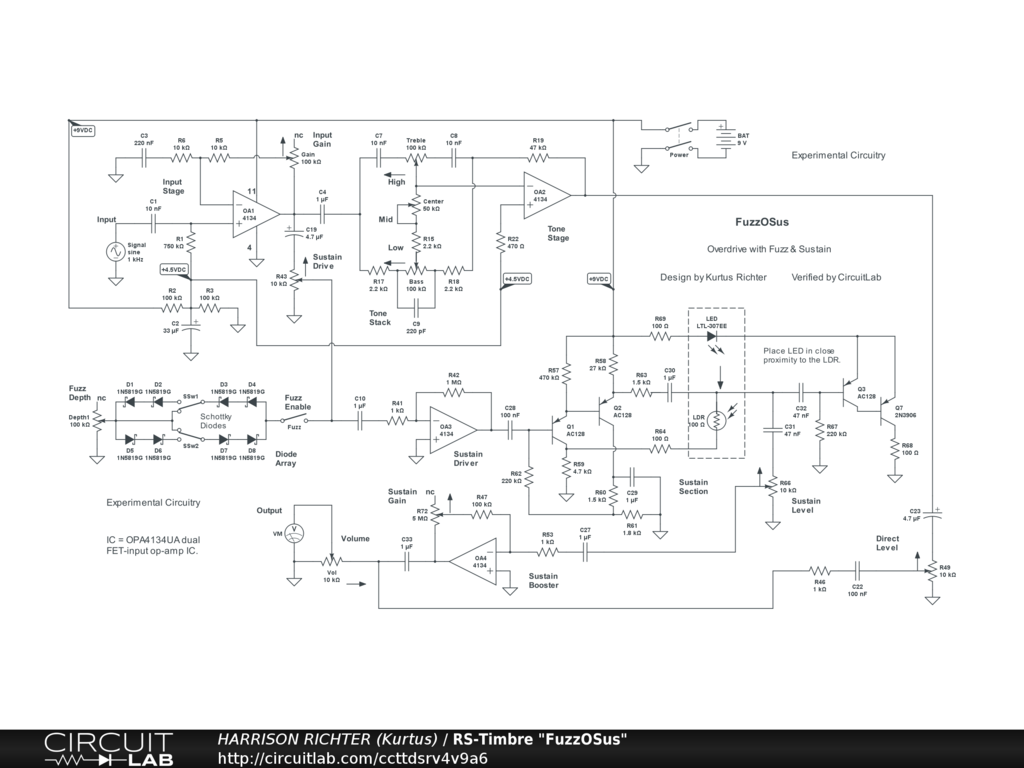

RS-Timbre "FuzzOSus" overdrive circuit with fuzz and sustain. Controls Include: Input Gain, Bass, Center, Treble, Direct Level, Sustain Drive, Fuzz Enable switch, Fuzz symmetry switches, Fuzz Depth, Sustain Gain, Sustain Level; and Volume. Note: Tone controls are for Direct signal only, and Fuzz is for Sustain signal only. The Direct and Sustain signals are mixed at the Volume control. The circuit's frequency range is from 86 Hz to 25 kHz with all controls at 50%. Example gains per frequency are -3 dBV @ 86 Hz, 0 dBV @ 100 Hz, +27.4 dBV @ 1 kHz, +24.8 dBV @ 4 kHz, +14 dBV @ 10 kHz, and +2 dBV @ 25 kHz. Suitable for 6-string electric guitar (not for 7/8-string guitar or bass-guitar). The circuit can be used for a stomp-box or rackmount project. The battery can be replaced by a regulated single-polarity DC supply providing +9VDC or +12VDC or +15VDC at >= 100 mA of current. And while simulator verified, treat the circuit as experimental. Breadboard test before committing to a soldered build.
