RO Imperatore III Guitar Amplifier PUBLIC

Created by
Created 1 hour, 53 minutes ago
Last modified 1 hour, 11 minutes ago
Tags guitar-amp

Summary

RO Imperatore III: 60-Watt Guitar-Amp Output Section

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

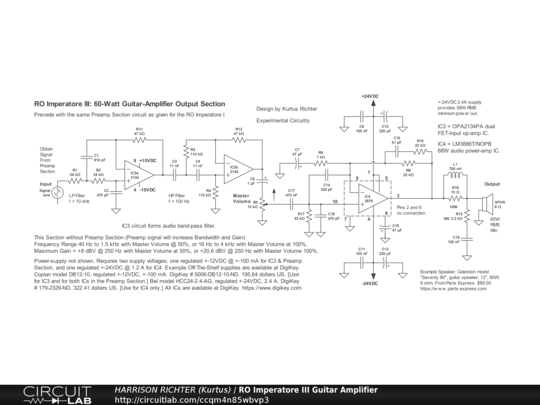

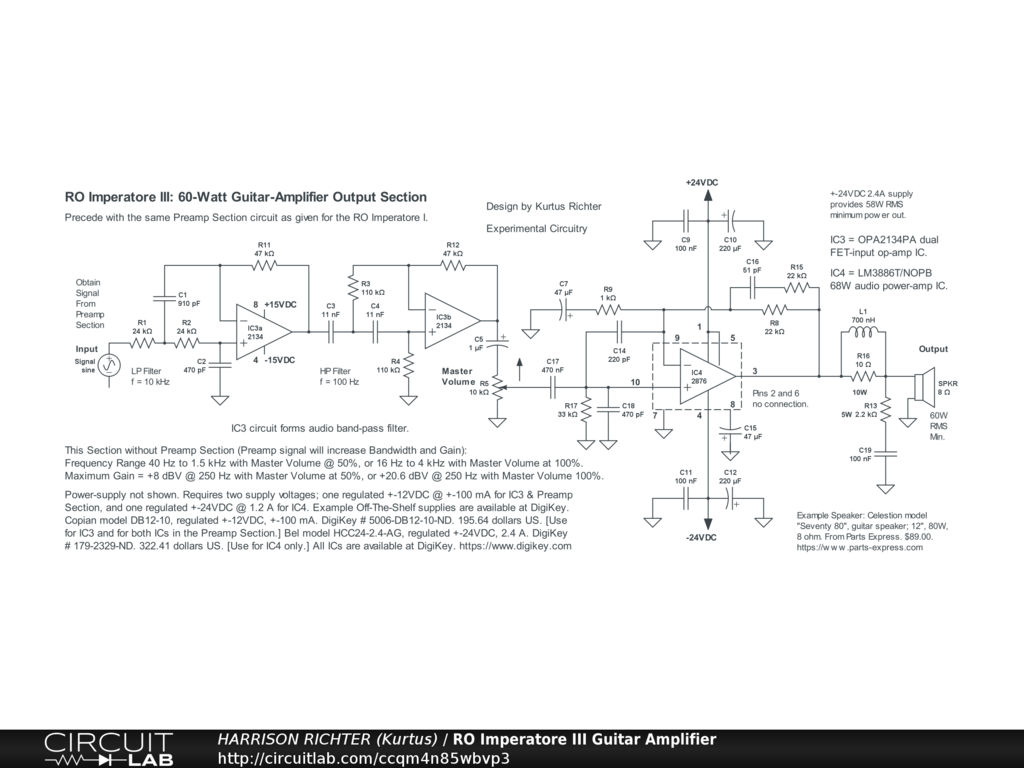

Richter Original Imperatore III: 60-watt guitar amplifier circuit, Output Section. This is much the same as the Imperatore II except for having a different power-amp IC (IC4), and a beefed-up power-supply, to get up to 60W RMS (more likely 58W RMS, but close enough, for all practical purposes). Refer to Imperatore II and the Preamp Section of Imperatore I for frequency range and gain stats. Note the example speaker mentioned at lower right in the diagram.
