Bypass capacitor simulation (PDN)
Copy and paste the appropriate tags to share.
Circuit URL (e-mail, IM, blog, etc.):
pdntool.com - CircuitLab&body=View this schematic and simulation on CircuitLab:%0A%0Ahttps://www.circuitlab.com/circuit/c259q3/pdntool_com/">
CircuitLab forums and comments:
BBCode (many online discussion forums):
Markdown:
HTML:

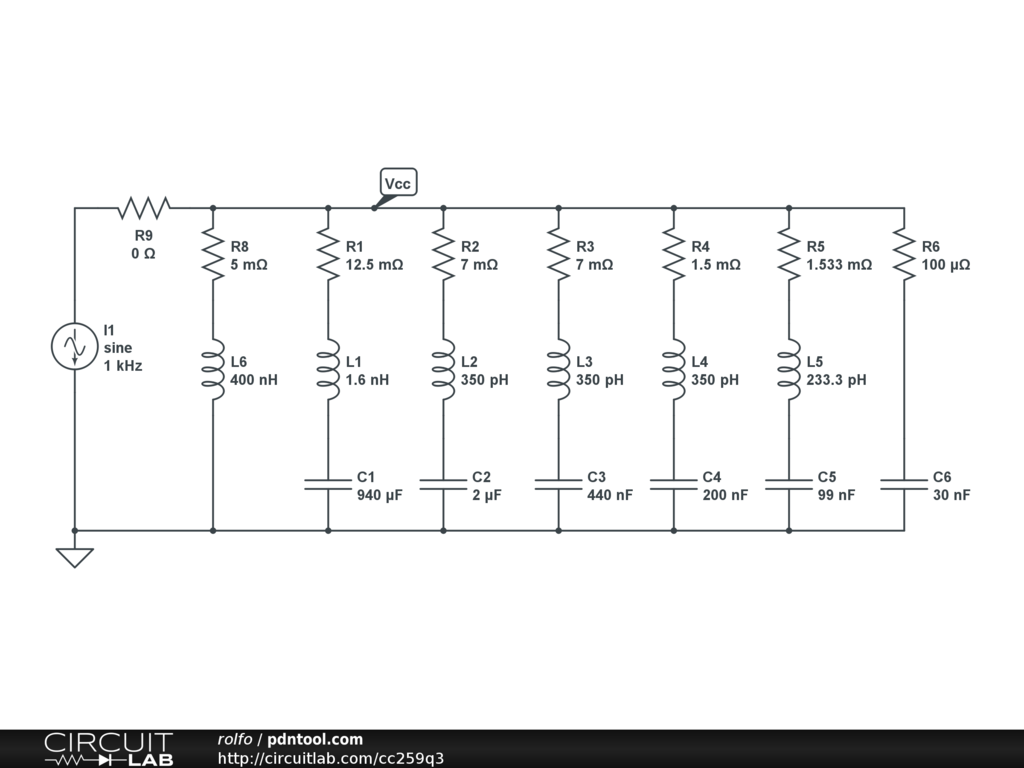

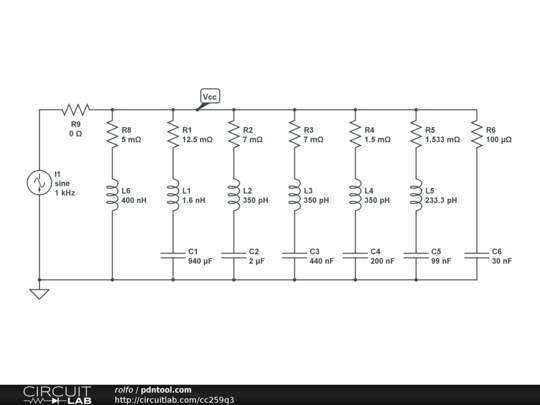

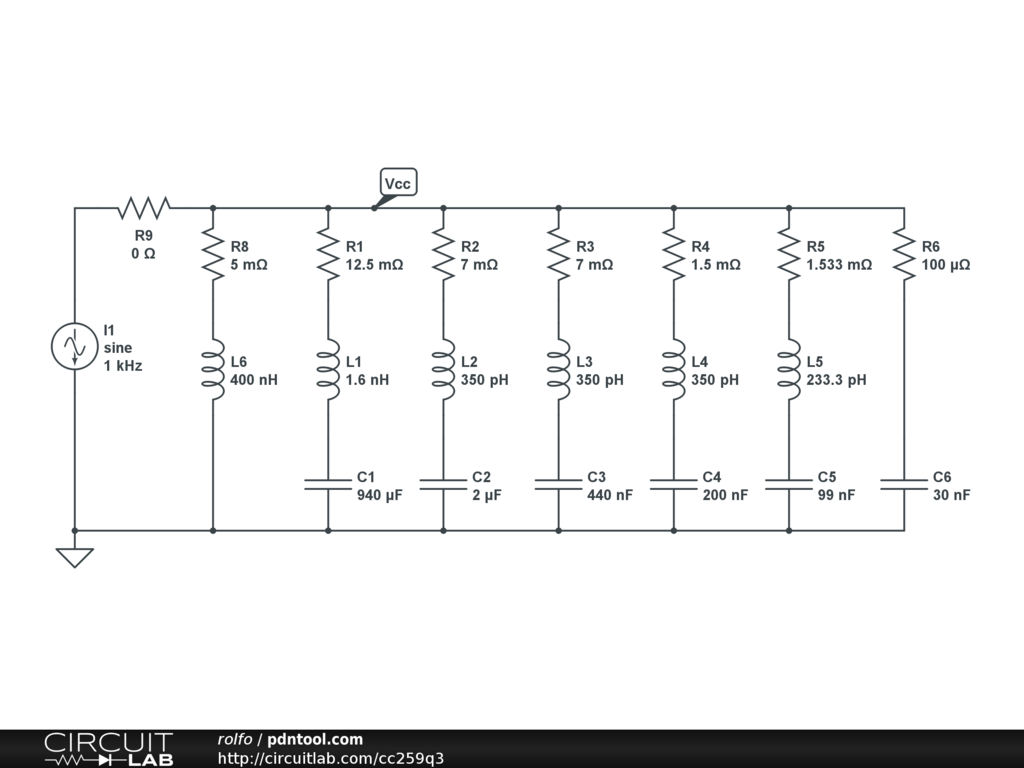

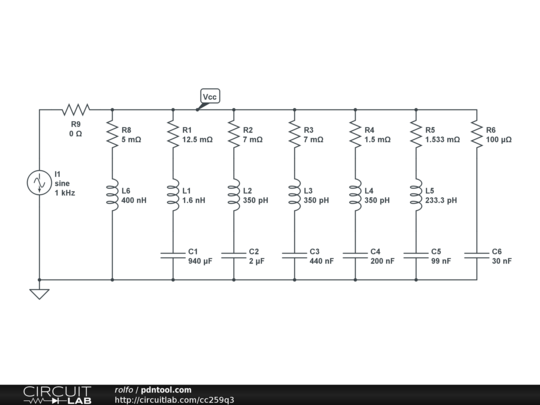

Nice to see this simulation of a typical bypass capacitor scheme matches 100% with what we can generate at http://pdntool.com - great validation both ways.
The first R/L emulates the power supply impedance.
The next 5 R/L/C are 5 bypass capacitor types with ESR/ESL and C. If using more capacitors of one type, just divide ESR and ESL with the number of capacitors - and multiply C with the number of capacitors.
The last R/C is the plane capacitance.
More about all that at the site.
