Power-Supply for 45W Guitar-Amp PUBLIC

Created by
Created February 07, 2026
Last modified 1 hour, 13 minutes ago
Tags power-supply

Summary

Power-Supply for 45W Guitar-Amp

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

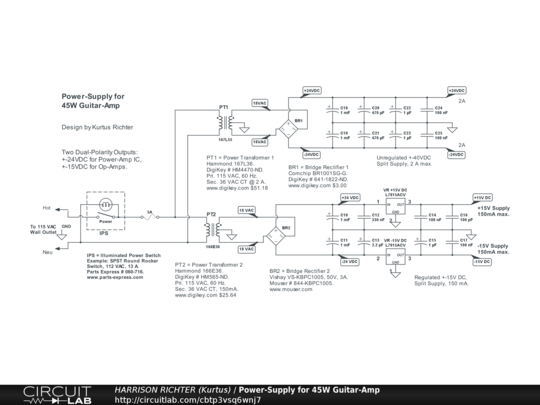

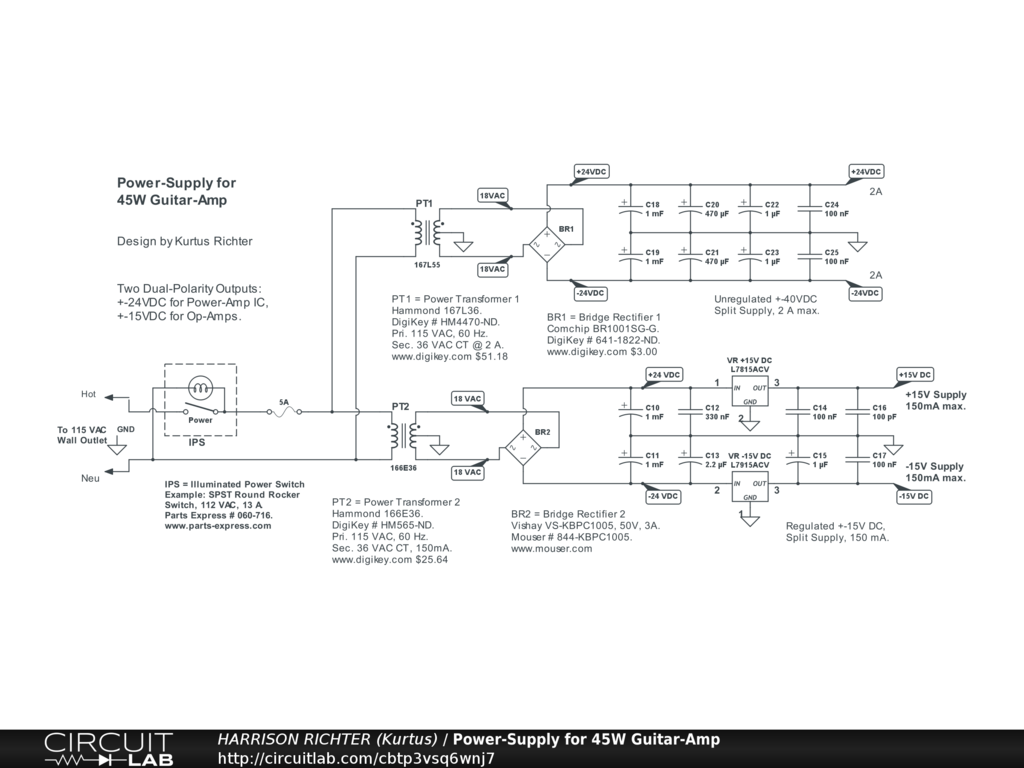

Power-supply for 45W guitar-amp. Provides regulated dual-polarity +-15VDC @ 150 mA for op-amps, and unregulated dual-polarity +-24VDC @ 2A for power-amp IC. Shield transformers from the rest of the circuitry. Experimental circuitry. Breadboard test before soldering.
