Hybrid Buffer V1 PUBLIC

Created by
Created October 31, 2016
Last modified October 31, 2016
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

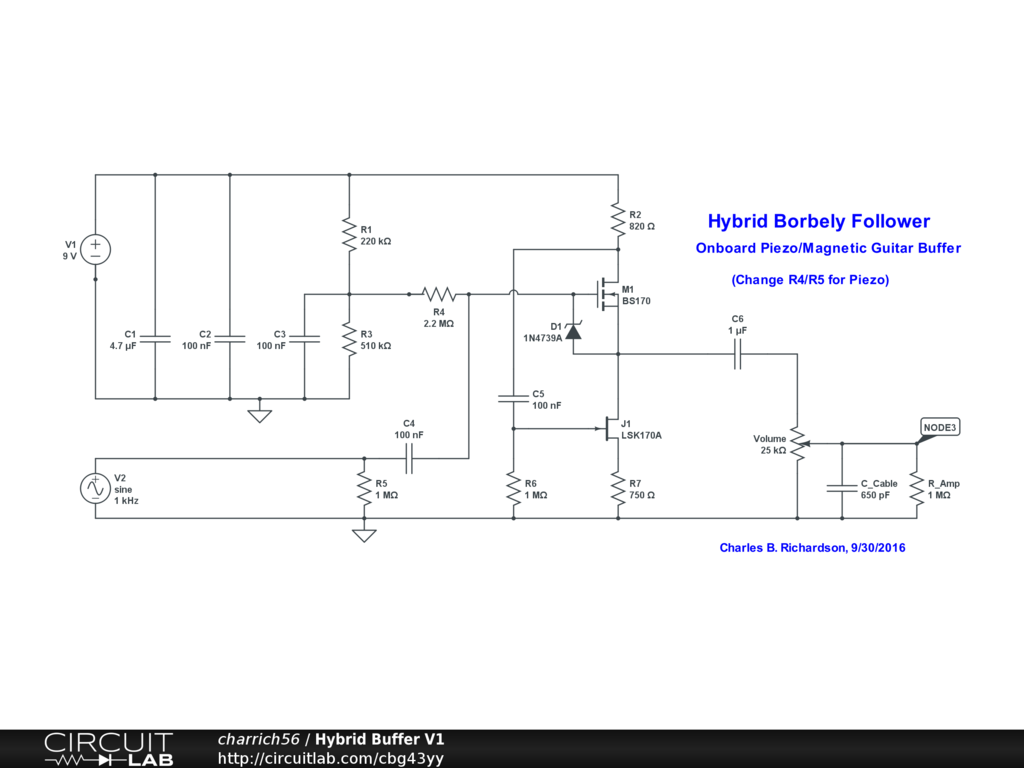

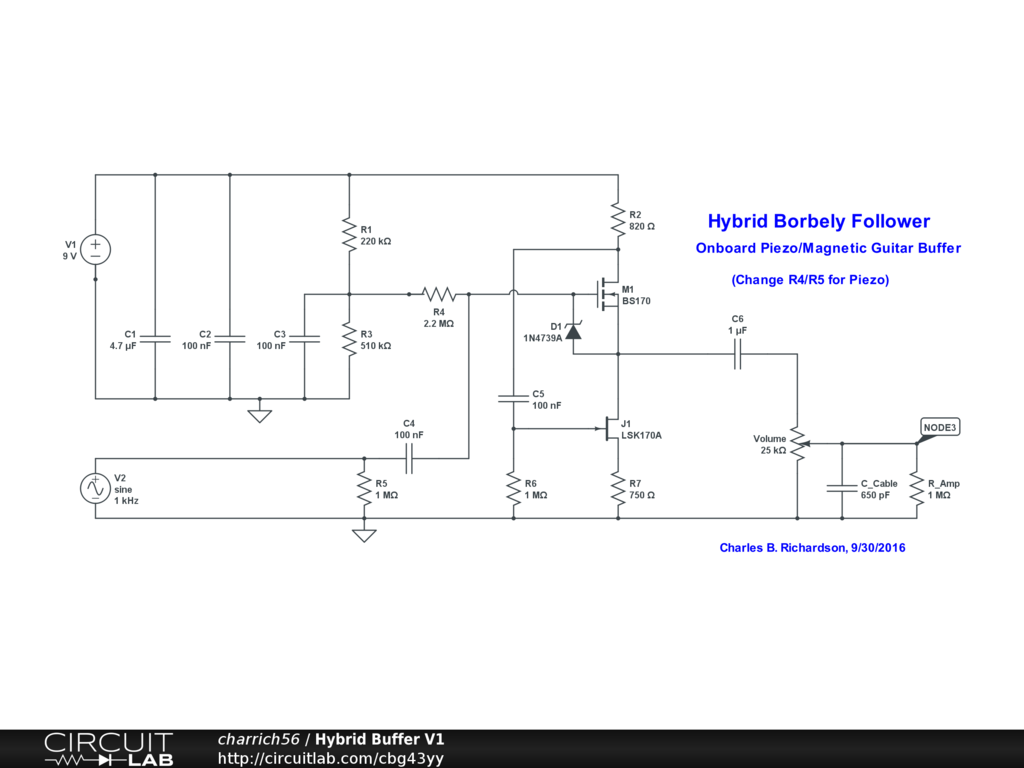

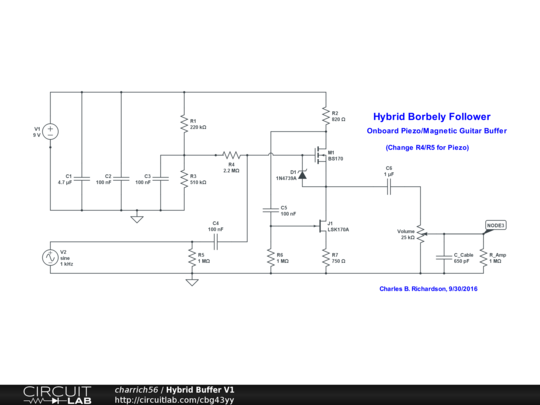

An onboard instrument buffer for guitars. Magnetic and piezo pickups are possible. This circuit has very good signal swing combined with low static current draw (550 uA.)
