Ideal Op-Amp with Finite Gain and Gain-Bandwidth Product: Laplace Block Model

Created by	UltimateElectronics
Created	July 09, 2020
Last modified	December 23, 2020
Tags	No tags.

Summary

The frequency response of a real op-amp is well modeled with two parameters: an open-loop DC gain, and a gain-bandwidth product. These two parameters can be modeled in a single Laplace Block.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Description

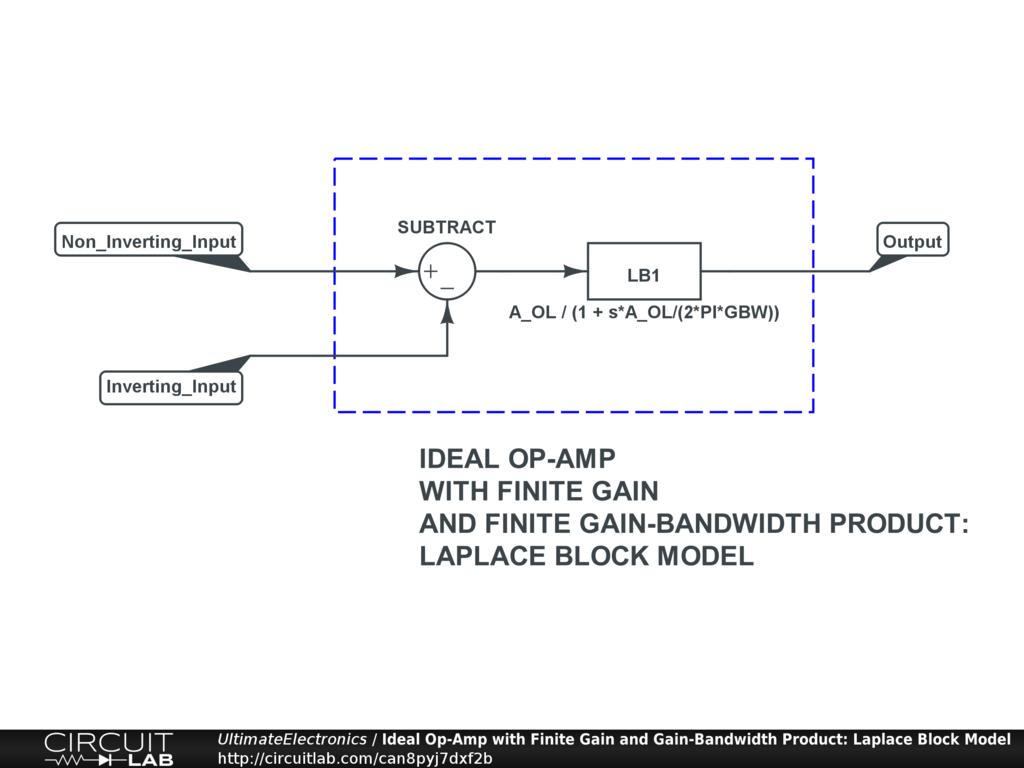

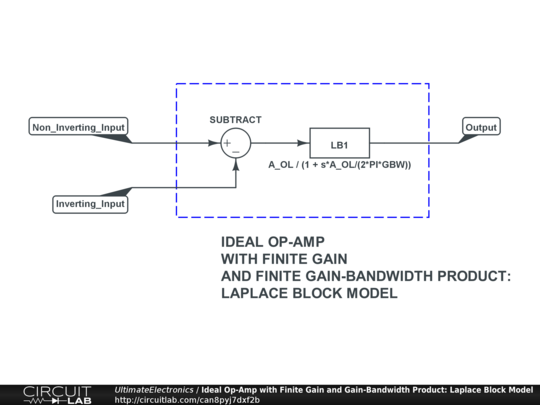

This example is from the The Ideal Op-Amp (Operational Amplifier) chapter of Ultimate Electronics Book. A real op-amp is well modeled with two parameters: an open-loop DC gain A_OL and a gain-bandwidth product GBW, resulting in a one-pole rolloff. This gain is easily modeled by a single Laplace Block element which incorporates both the DC behavior as well as the reduced gain at higher frequencies.
