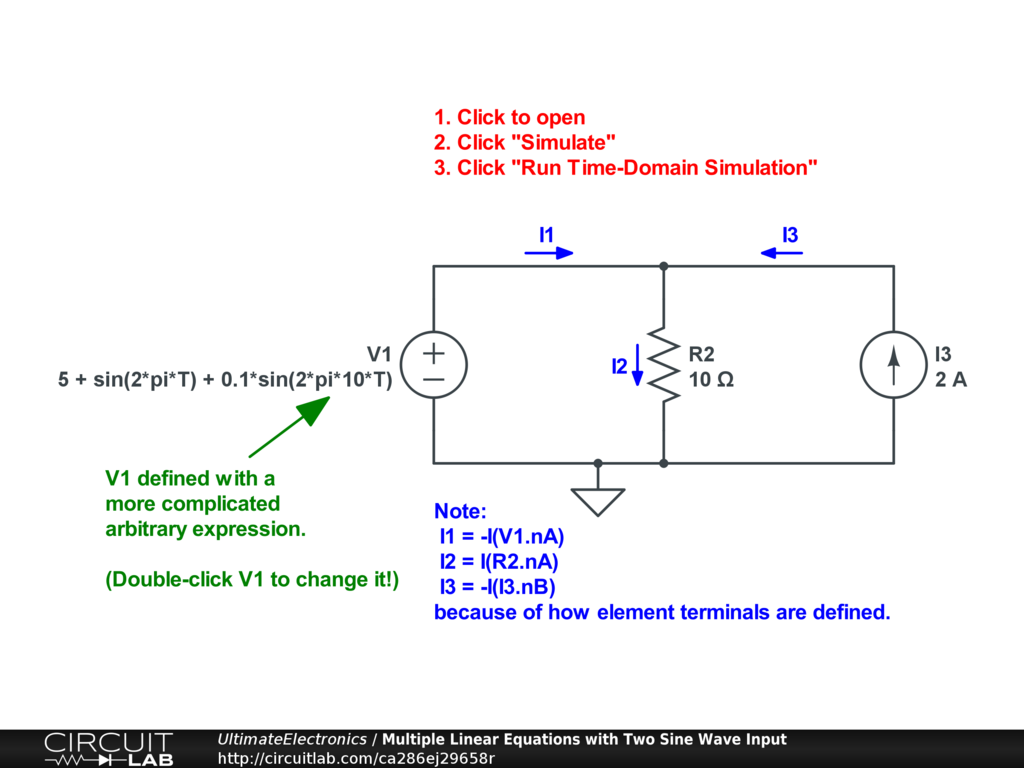

Simulates a simple circuit driven by a voltage source which is the sum of two different sine waves at different frequencies.


This example is from the Linear & Nonlinear chapter of Ultimate Electronics Book. It demonstrates a simple linear circuit stimulated by the sum of two different sine waves at two different frequencies.
