JFET Common source amplifier

Created by	Ahmood
Created	June 27, 2013
Last modified	June 28, 2013
Tags	common-source-amplifier constant-current-source jfet

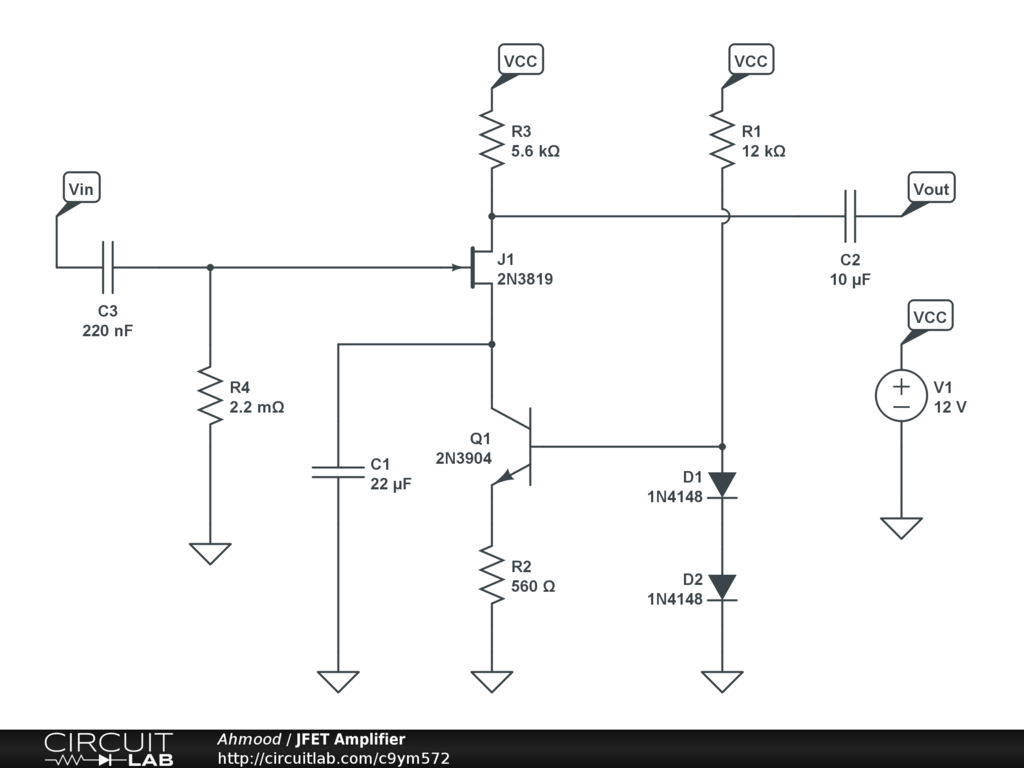

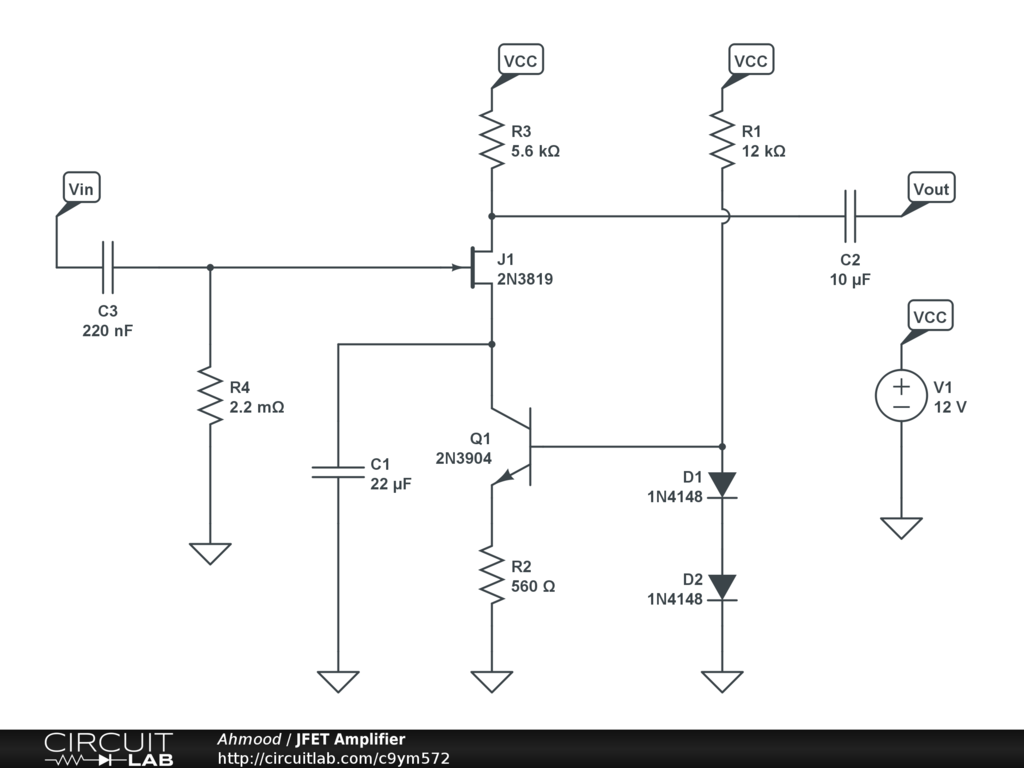

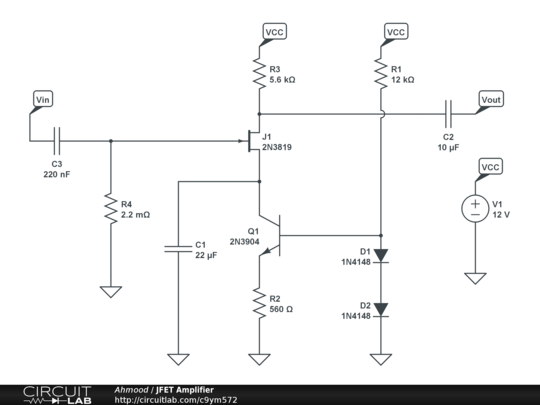

JFET common source amplifier circuit. An NPN BJT transistor is used to provide constant current bias for the JFET.

Capacitor C1 is used to provide a path to AC signals, effectively providing a stable DC bias point for the JFET (VDS = 5.88 V and ID = 0.87 mA)
