Regulated +-9VDC 500mA Supply PUBLIC

Created by
Created June 01, 2025
Last modified July 03, 2026
Tags power-supply

Summary

Regulated +-9VDC 500mA Power-Supply Circuit

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

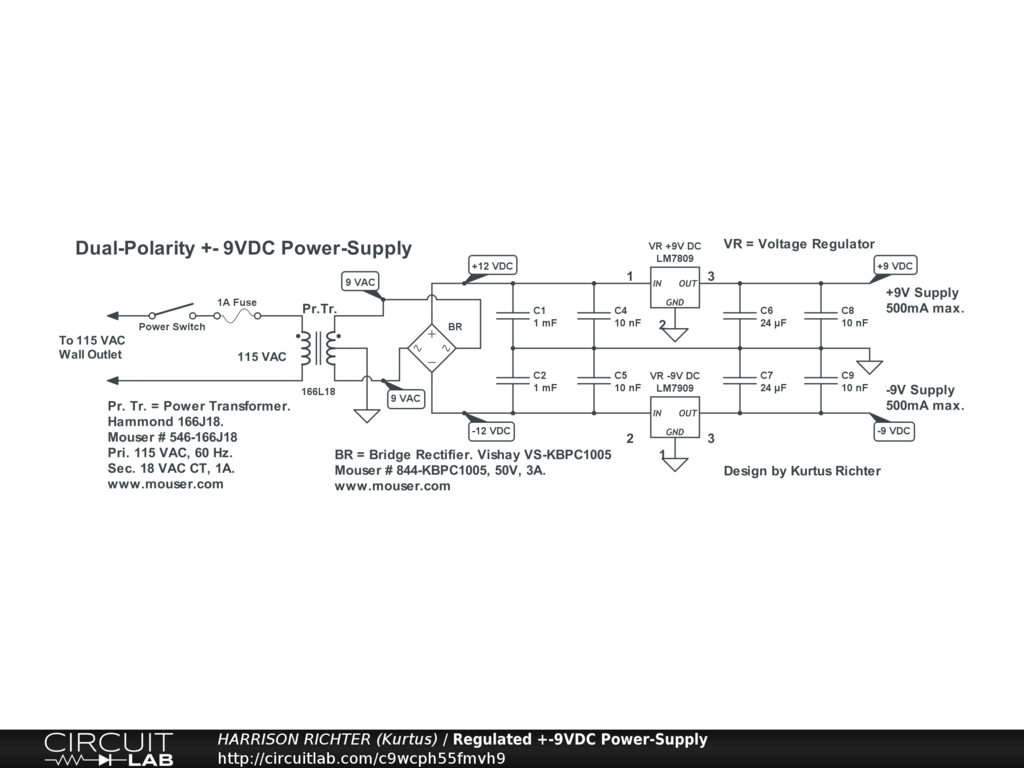

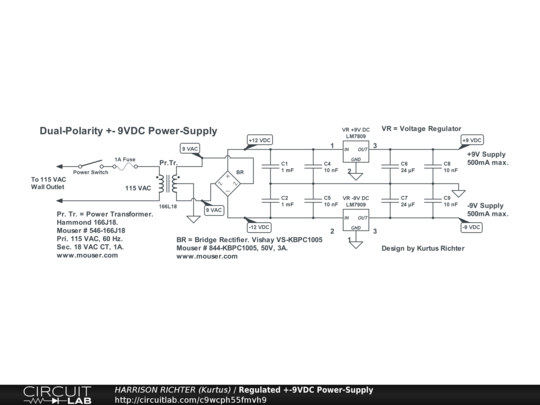

Regulated dual-polarity +-9VDC power-supply giving up to 500mA of current. Regulators should be on heatsinks, and the transformer should be shielded from all circuitry.
