| Tags | butterworth low-pass school-assignment |

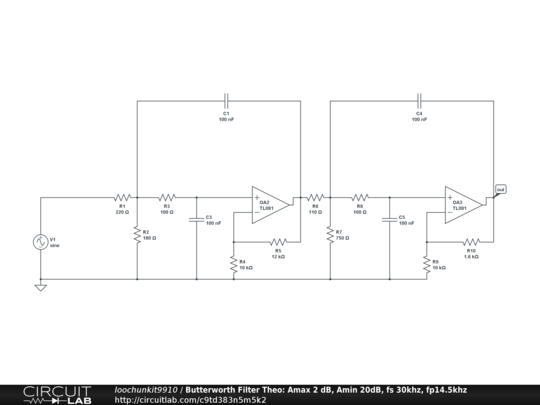

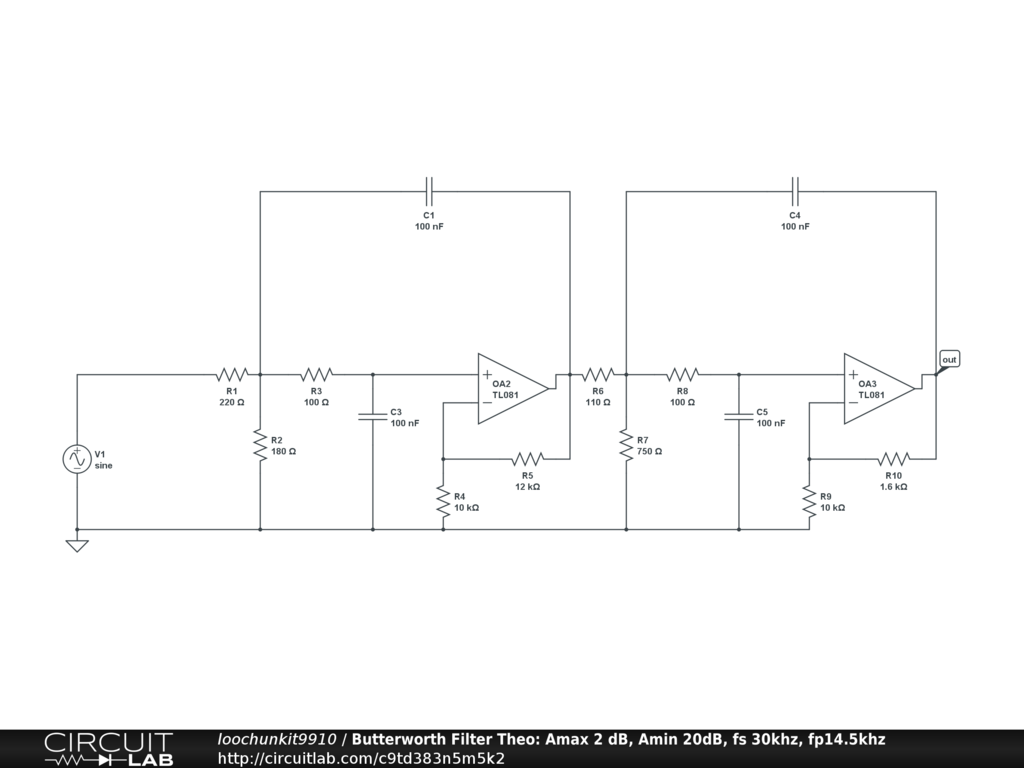

Specification Actual (N =4 )
Amin 33 dB
Passband Frequency, fp 13.55kHZ
Stopband Frequency, fs 41.5khz
Cut-off frequency, fo 15.76kHz
Gain, A when fs = 30kHz 22.18 dB
Gain, A when fp = 14.5kHz 2.48 dB
