3-Band Baxandall Tone-Control

Baxandall Tone-Control Circuit with Added Midrange Control

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

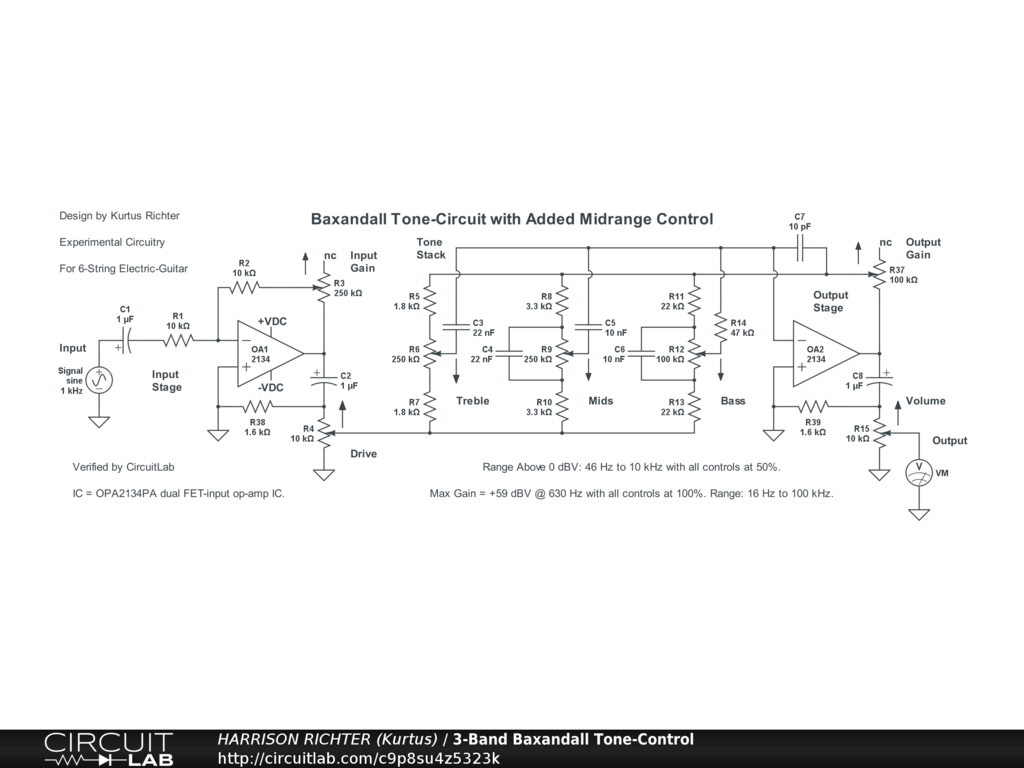

Example Baxandall tone-control circuit with added midrange control for electric guitar.

No comments yet. Be the first!

Only the circuit's creator can access stored revision history.

3-Band Baxandall Tone-Control PUBLIC
