Tags diode   dpdt   dpdt-relay   relay   transistor


Not provided.

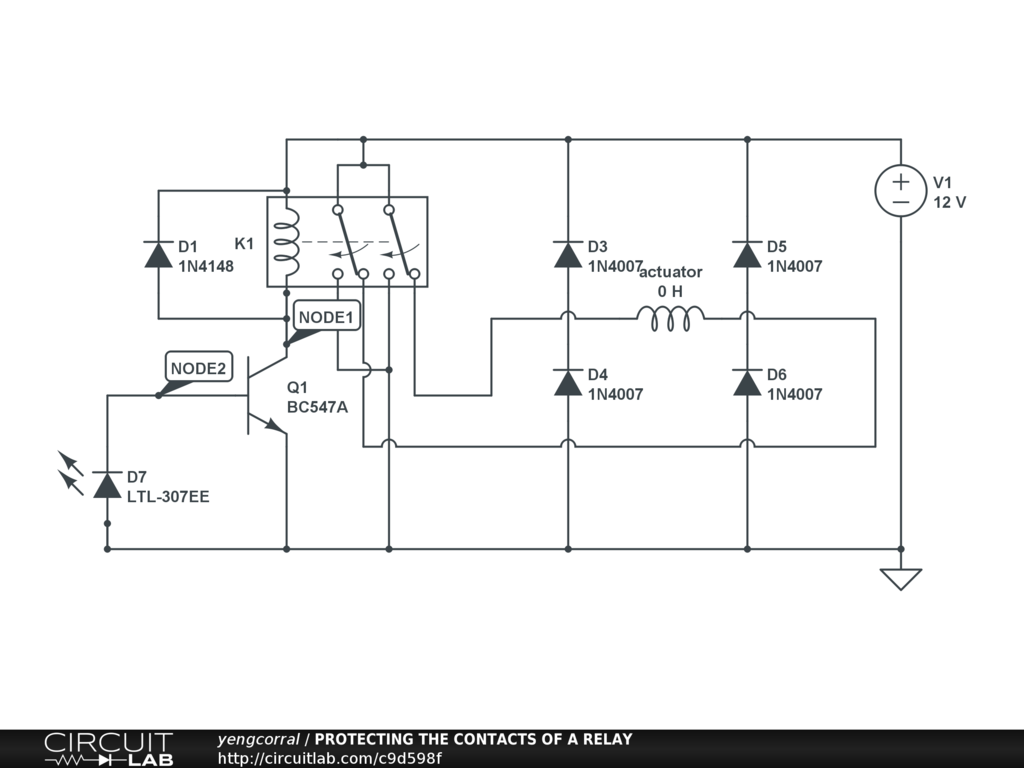

The contacts of a relay can be protected from the damaging effects of reversing an actuator. The circuit shows a double-pole double-throw relay driving an actuator. The 4 "bridge diodes" around the actuator "squelch" the back-emf from damaging the contacts.
