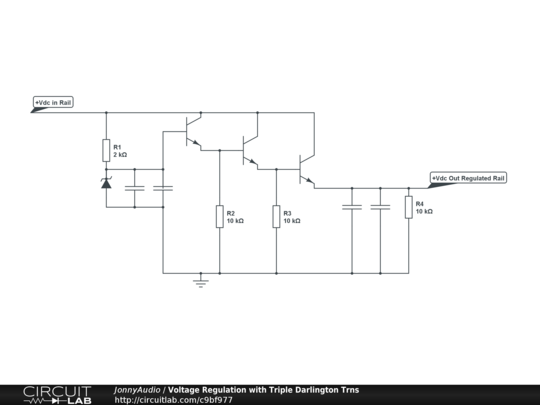

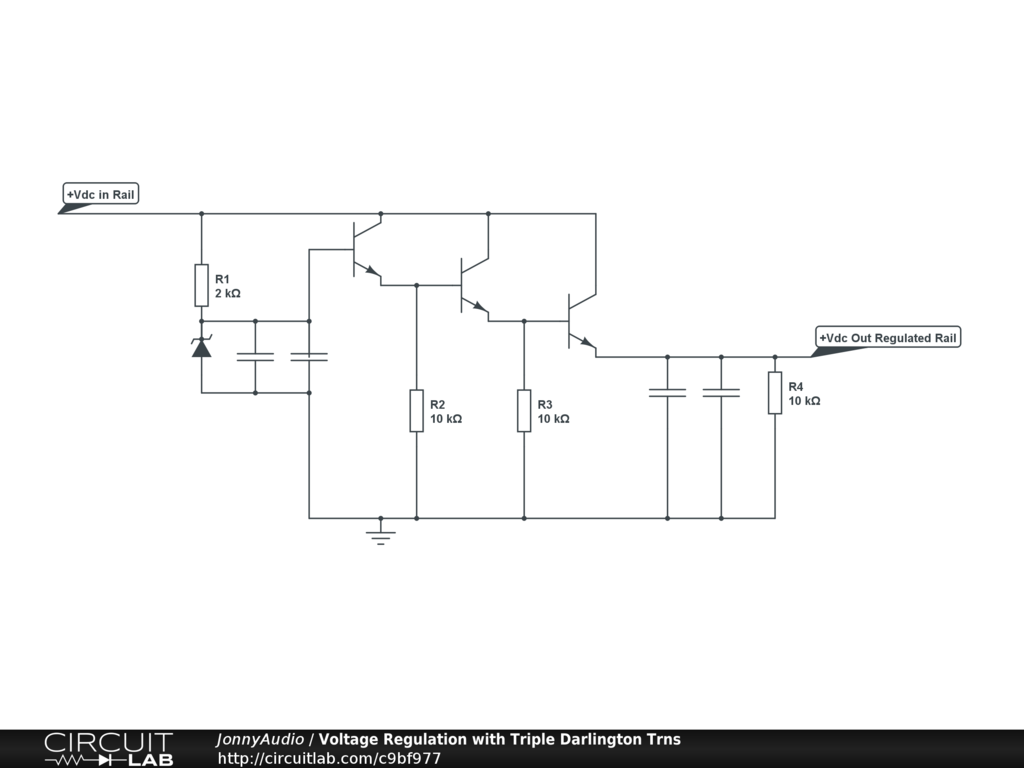

The Voltage Regulater circuit works in the real word as one of my own V-Reg circuits Expect a voltage drop of about 1.5 to 2 v below the Zenner diode you use. i.e 20v Zenner Diode expect 18.5 to 18v at output.
