Supply for 10-Watt Guitar-Amp PUBLIC

Created by
Created February 18, 2026
Last modified 1 hour, 28 minutes ago
Tags power-supply

Summary

Power-Supply for RS-Timbre: 10-Watt Guitar-Amp

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

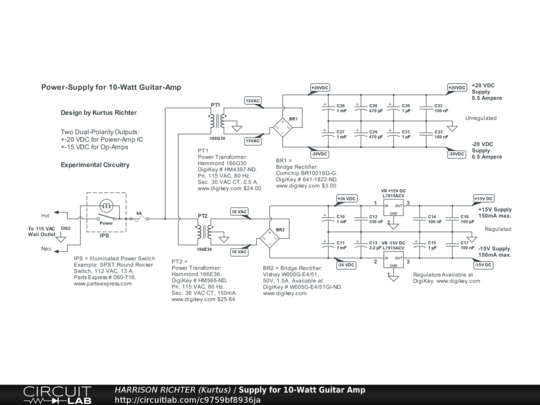

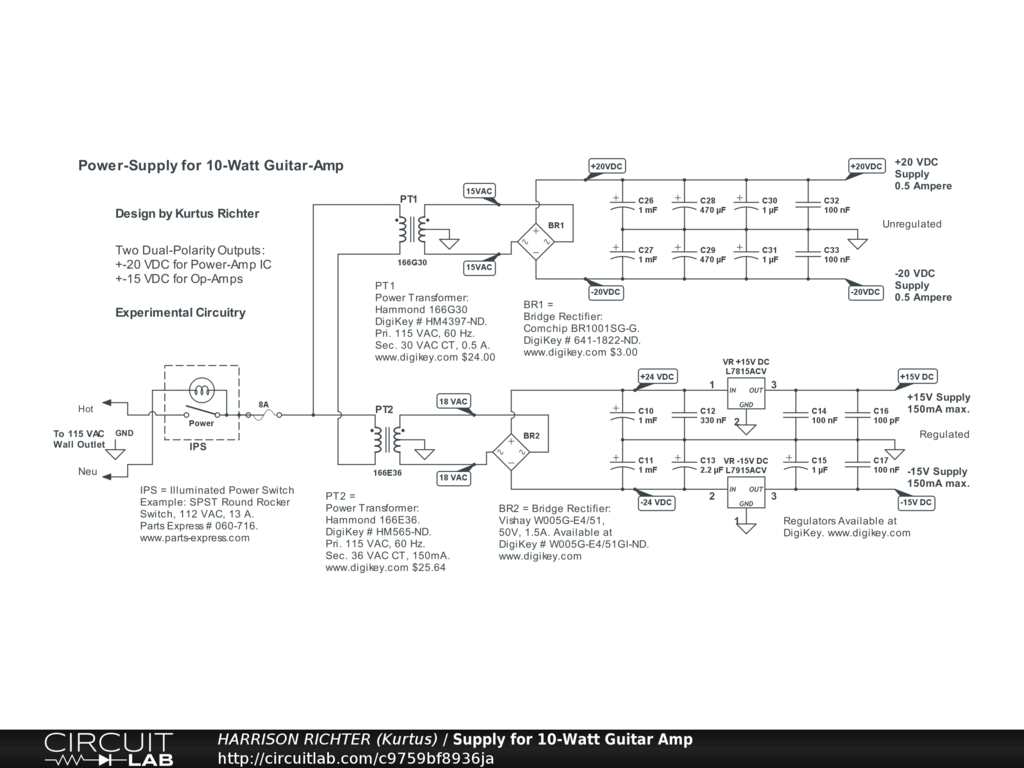

Power-supply for RS-Timbre: 10-Watt Guitar-Amp. Provides regulated dual-polarity +-15VDC @ 150 mA for op-amps, and unregulated dual-polarity +-20VDC @ 500 mA for power-amp IC. Supply is sufficient for two amplifiers, if stereo project is desired. Note: Shield the transformers from the rest of the circuitry. Parts available at https://www.digikey.com .
