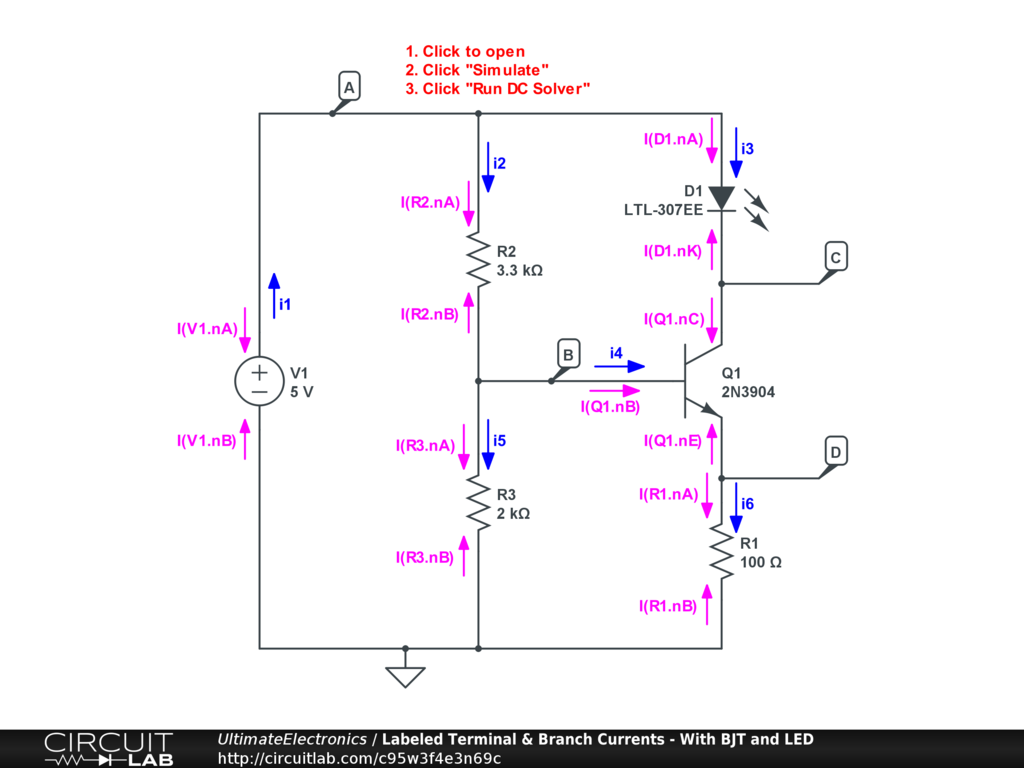

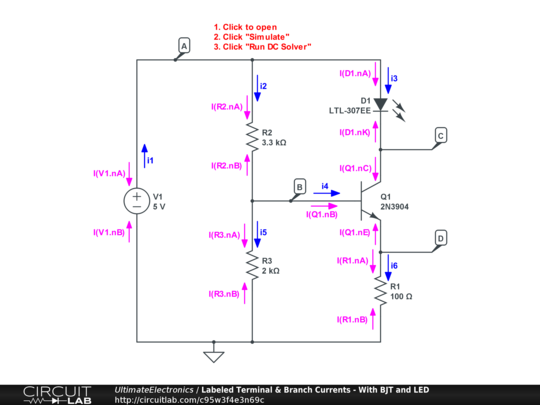

Terminal currents and branch currents are related, but it's important to get the signs correct. This schematic illustrates the difference between terminal currents and branch currents.


This example is from the Labeling Voltages, Currents, and Nodes chapter of Ultimate Electronics Book. It illustrates the relationship between branch currents and terminal currents. See the equations in the chapter.
