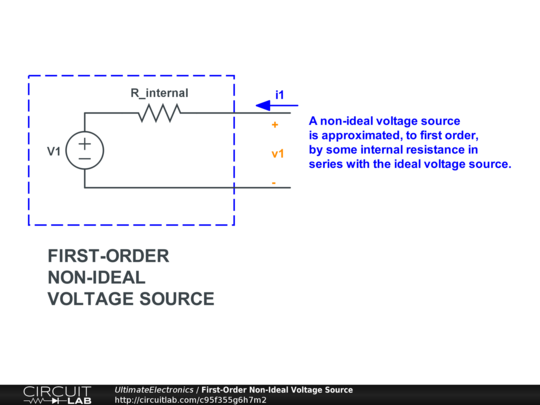

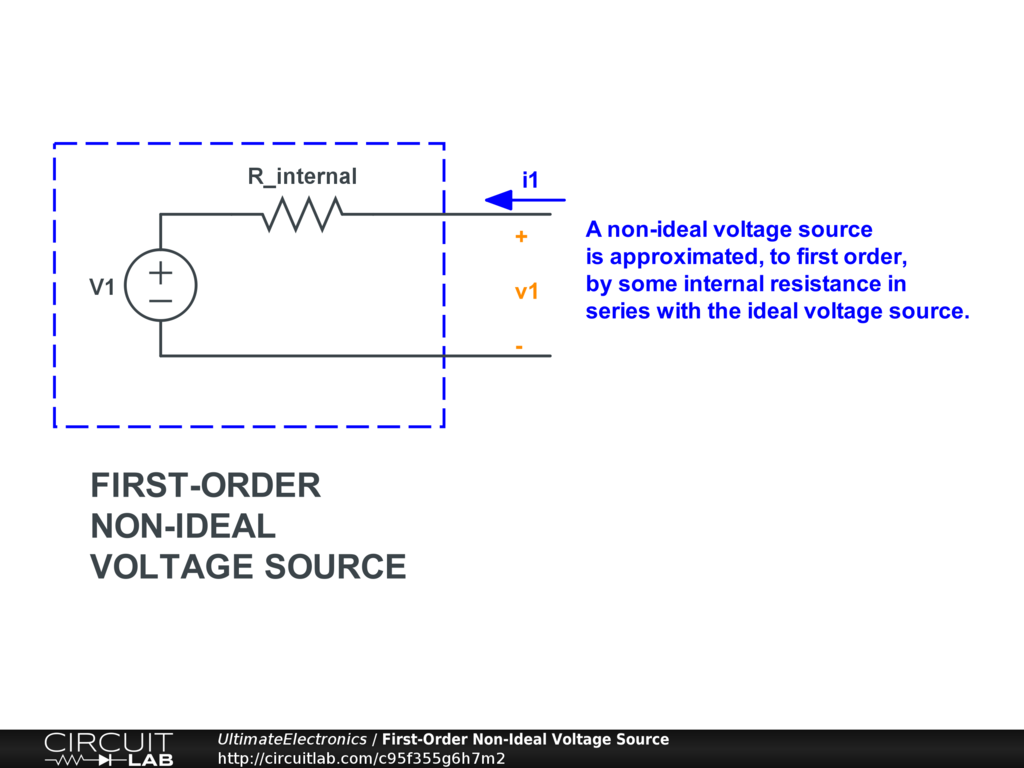

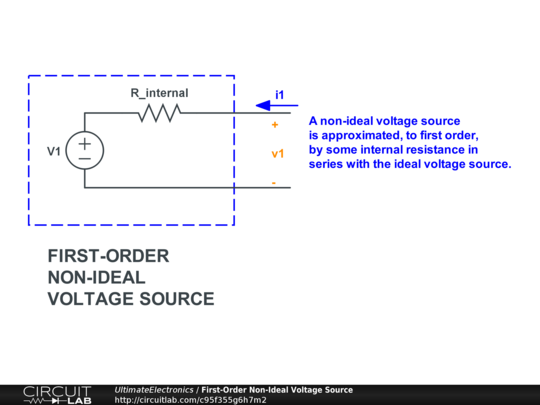

A non-ideal voltage source has a nonzero internal resistance.


This example is from the Ideal Sources chapter of Ultimate Electronics Book. A first-order non-ideal voltage source is well modeled by an internal resistance in series with the voltage source. This causes a voltage drop as current varies.
