Power-Supply for 35W Guitar-Amp PUBLIC

Created by
Created February 13, 2026
Last modified 1 hour, 20 minutes ago
Tags power-supply

Summary

Power-Supply for 35W Guitar-Amp

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

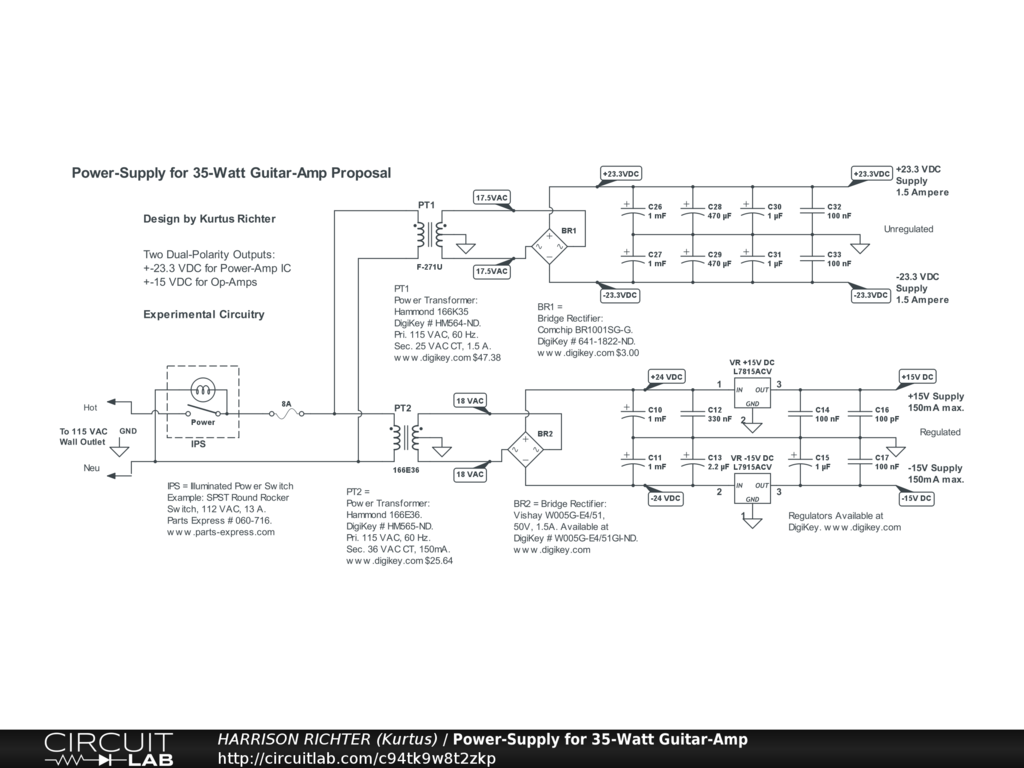

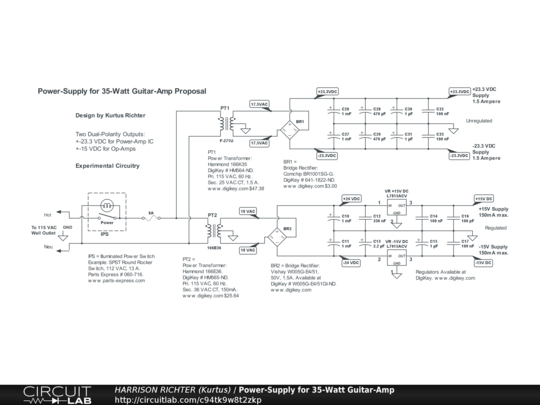

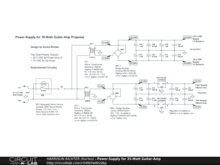

Power-supply for 35W guitar amplifier. Provides regulated dual-polarity +-15 VDC @ 150 mA for op-amps, and unregulated dual-polarity +-23.3 VDC @ 1.5 A for the power-amp IC. Experimental circuitry. Breadboard test before soldering.
