This circuit is a project for the Electric and Electrical Circuits discipline from Pontifical Catholic University of Rio de Janeiro.

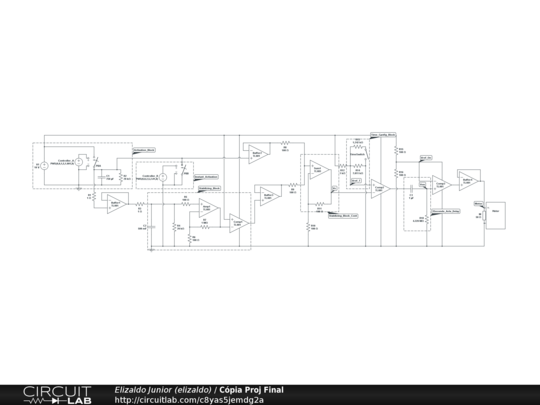

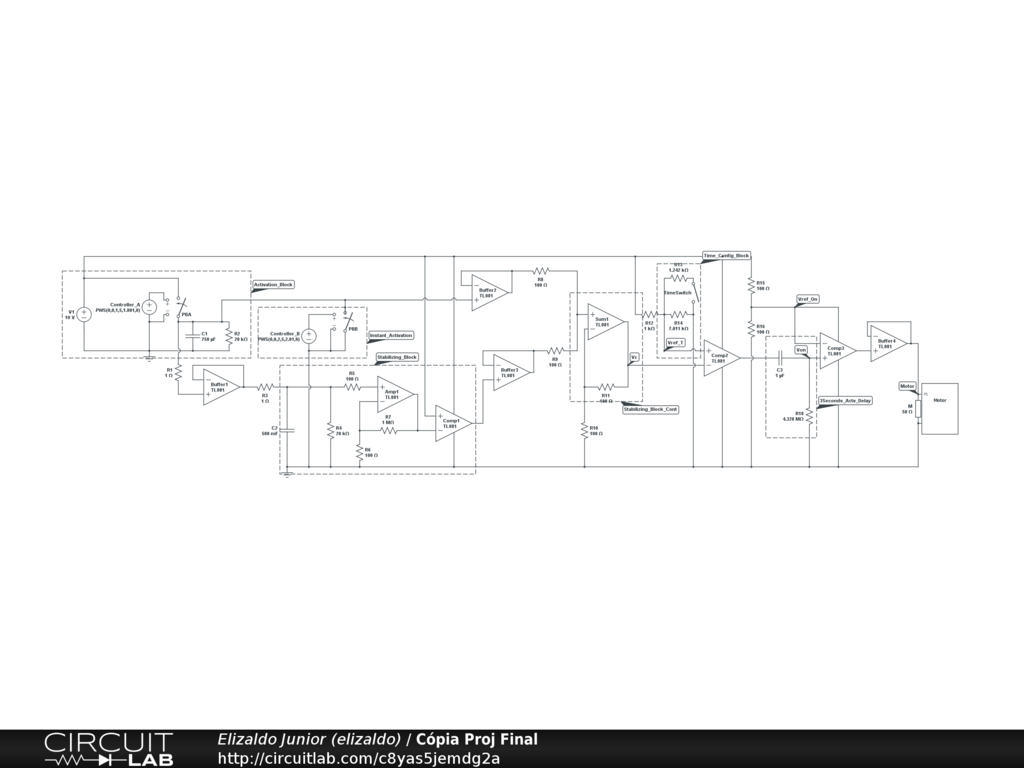

This circuit aims to turn on a motor two or ten seconds (depending on how Time Switch is set) after pressing the push button A (PBA). If push button B (PBB) is pressed, the motor starts automatically. In both ways, the motor is turned on for three seconds only.
