Power-Supply for 50W Guitar-Amp PUBLIC

Created by
Created February 12, 2026
Last modified 1 hour, 9 minutes ago
Tags power-supply

Summary

Power-Supply for 50W Guitar-Amp

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

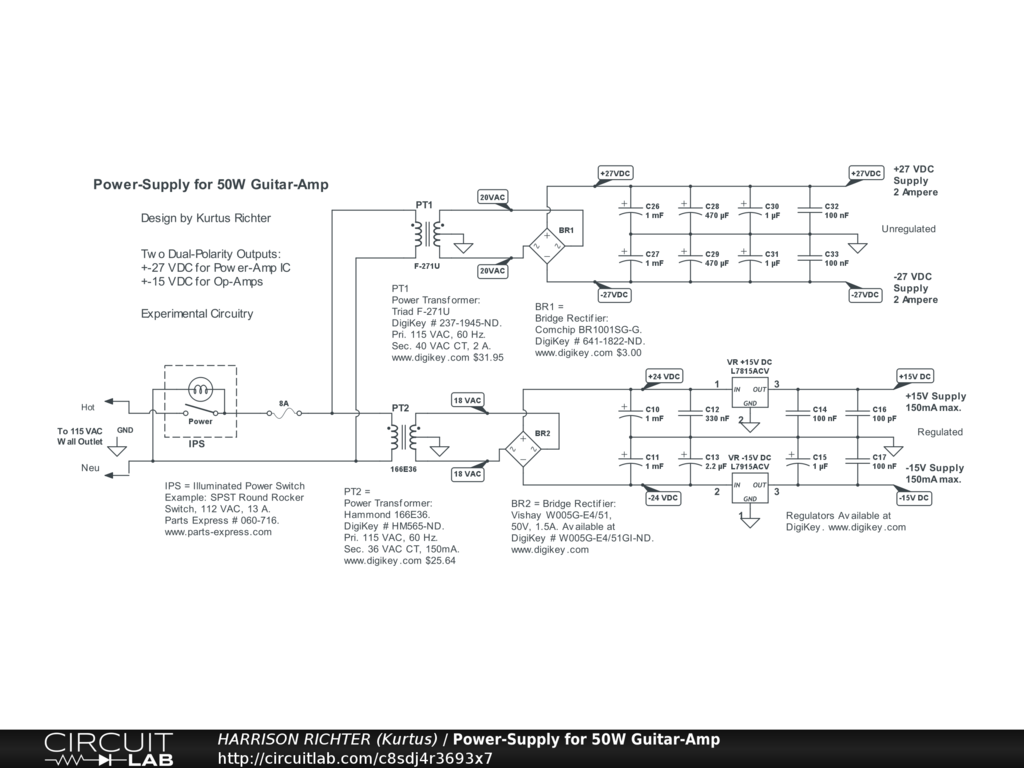

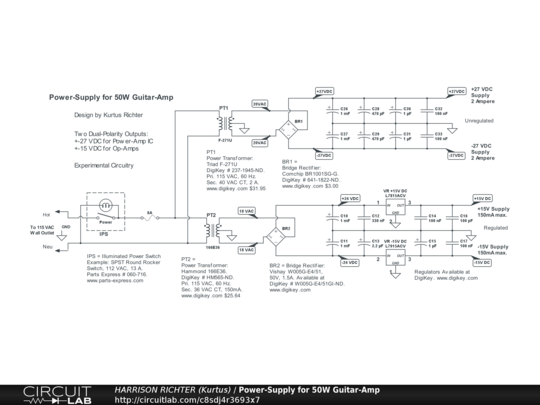

Power-supply for 50W Guitar-Amp. Provides regulated dual-polarity +-15 VDC @ 150 mA for op-amps and unregulated dual-polarity +-27 VDC @ 2 A for power-amp IC. Shield the transformers from the rest of the circuitry. Experimental circuitry. Breadboard test before soldering. House all circuitry in a grounded metal enclosure, to prevent EMF interference.
