Power-Supply for 100W Guitar-Amp PUBLIC

Created by
Created March 07, 2026
Last modified June 30, 2026
Tags power-supply

Summary

Power-Supply for 100W Guitar-Amp

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

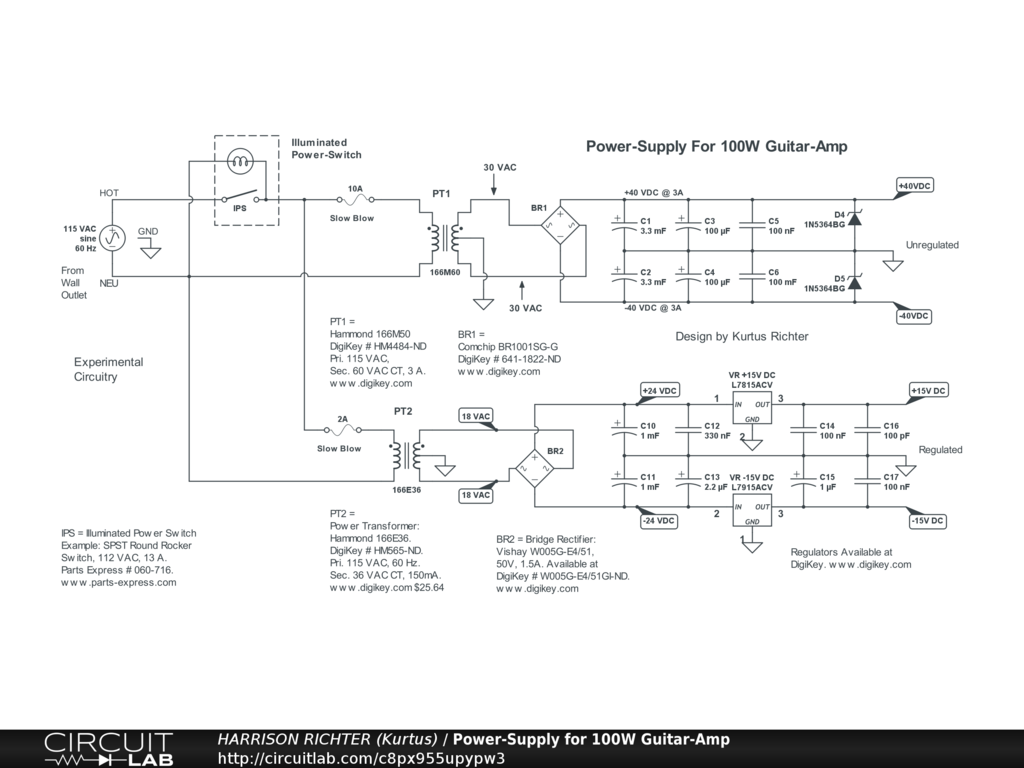

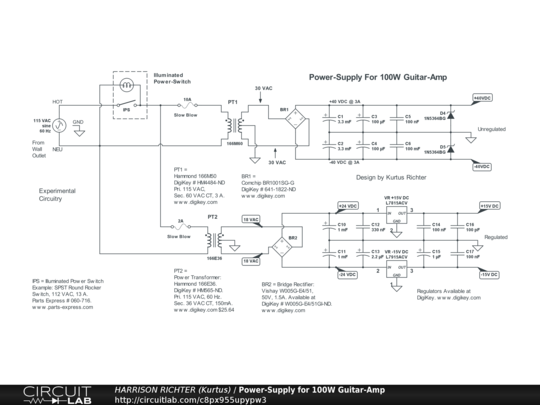

Powser-supply for 100W Guitar-Amp. Provides regulated dual-polarity +-15 VDC @ 150 mA for op-amps, and unregulated dual-polarity +-40 VDC @ 3A for power-amp IC. Experimental circuitry. Breadboard test before soldering. Shield the transformers from the rest of the circuitry, and house complete project in a grounded metal enclosure.
