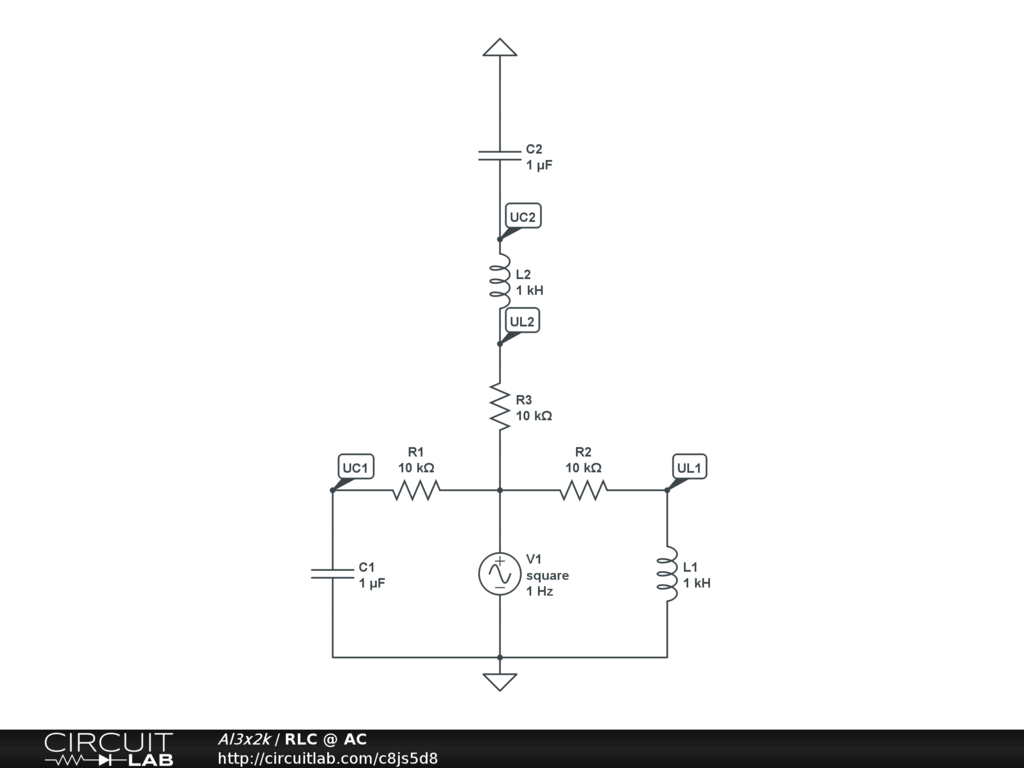

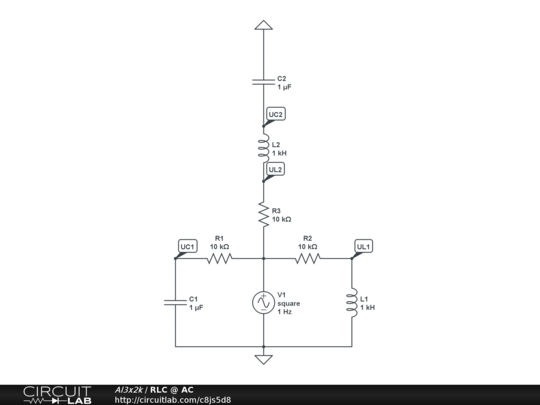

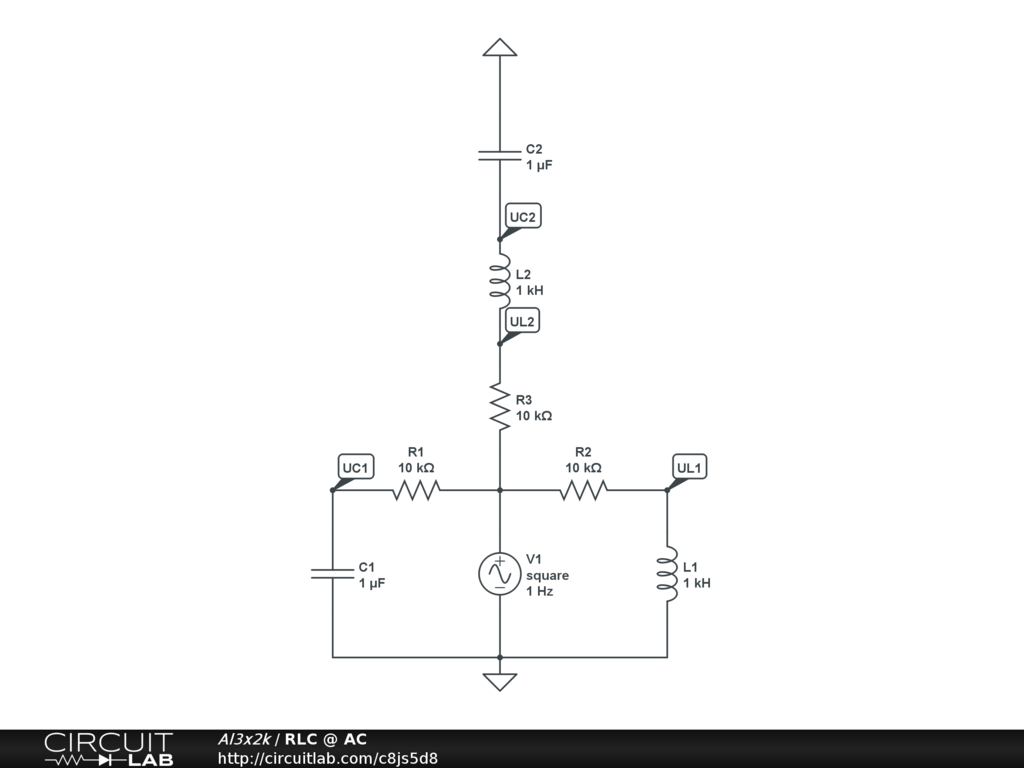

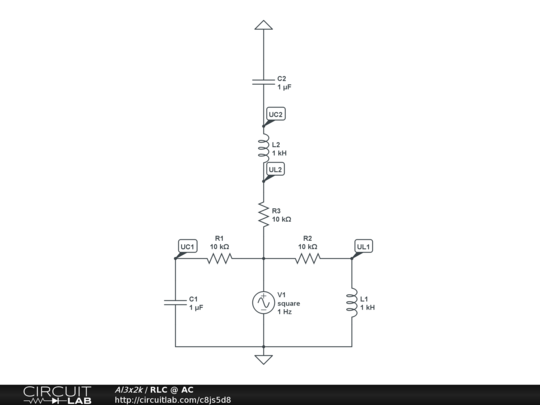

This circuit show the behavior of RL, RC and RLC in the frequency domain.


The circuit is quite the same as "RLC @ DC", but the source is a voltage function generator and the switch is missing. The source is set to generate a square wave at one hertz. Therefor the time domain simulation is set to stop at two seconds. Interesting to see is, that the RL and RC components produce a two times higher level, for voltage and current respectively, at the moment the source switches it levels.
