Experimental Analog Delay Circuit PUBLIC

Created by
Created January 22, 2026
Last modified January 22, 2026
Tags analog-delay

Summary

Experimental Analog Delay Circuit

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

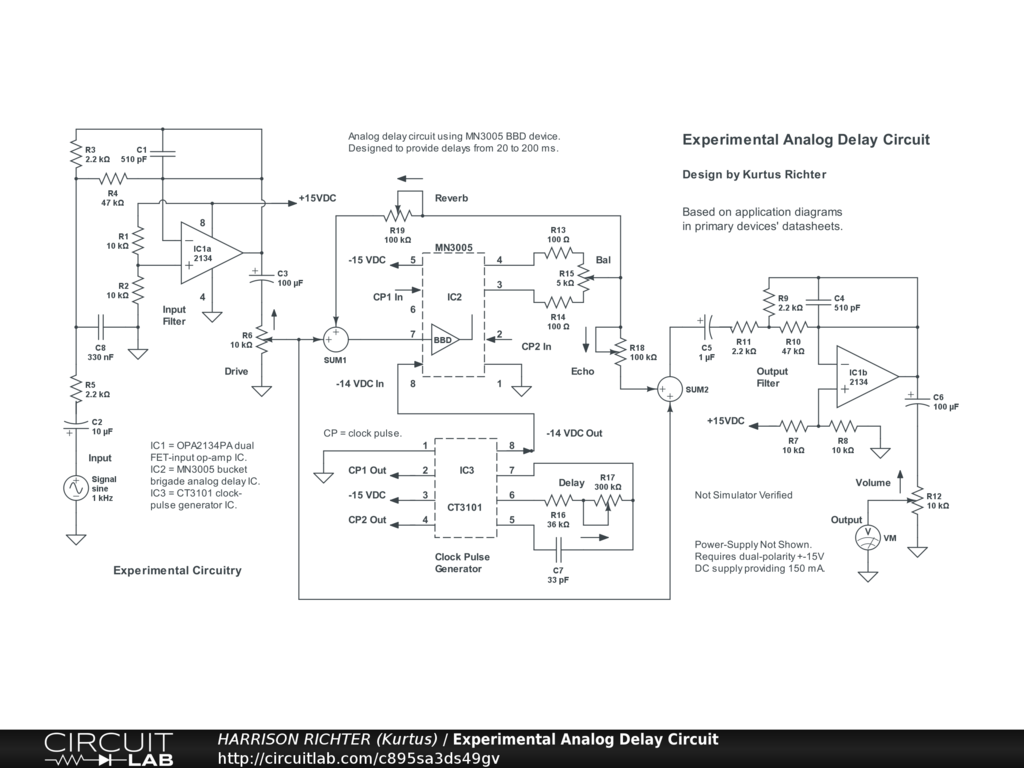

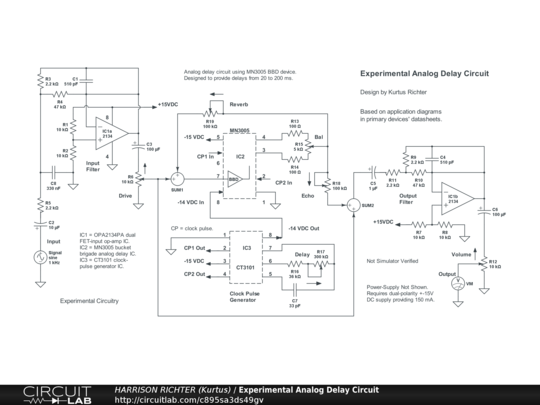

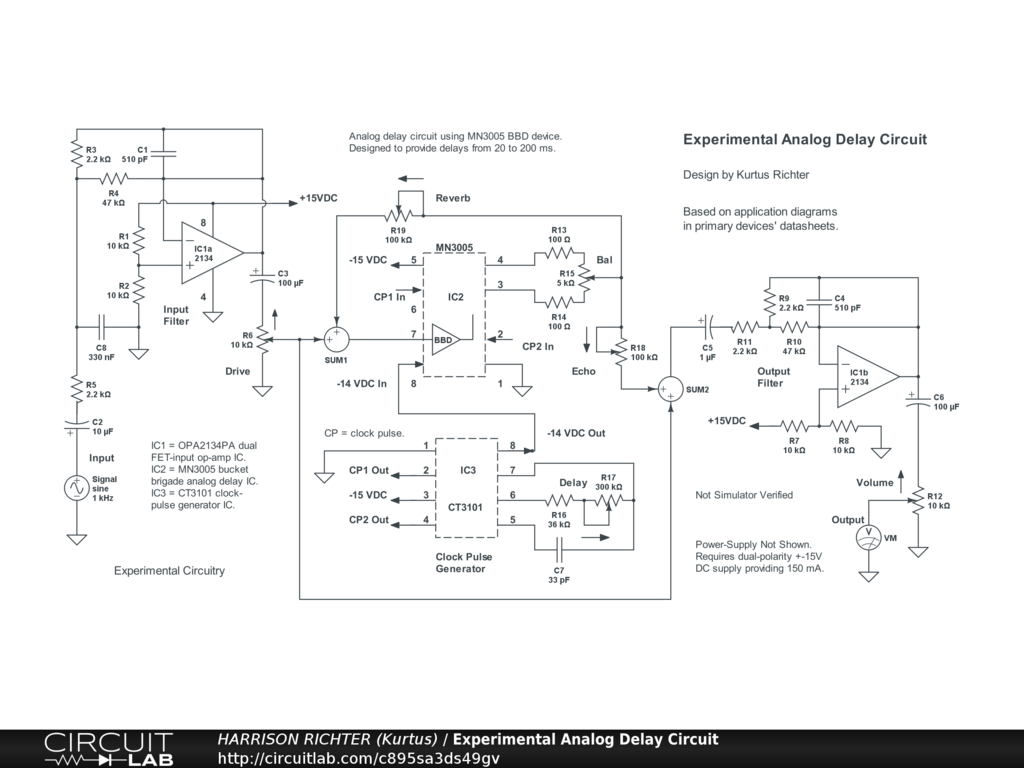

Unverified experimental analog delay circuit for guitar. Controls Include: Drive, Balance, Delay, Reverb, and Volume. Design based on applications information in device datasheets. Not built and tested. Not simulator verified. Power-supply not shown. Requires a regulated dual-polarity +-15V DC supply with up to 150 mA of current. Thoroughly breadboard test before committing to a soldered build.
