Dream-Rig Circuit 4 PUBLIC

Created by
Created April 08, 2026
Last modified April 08, 2026
Tags spring-reverb

Summary

3-Spring Reverb Circuit for Guitar

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

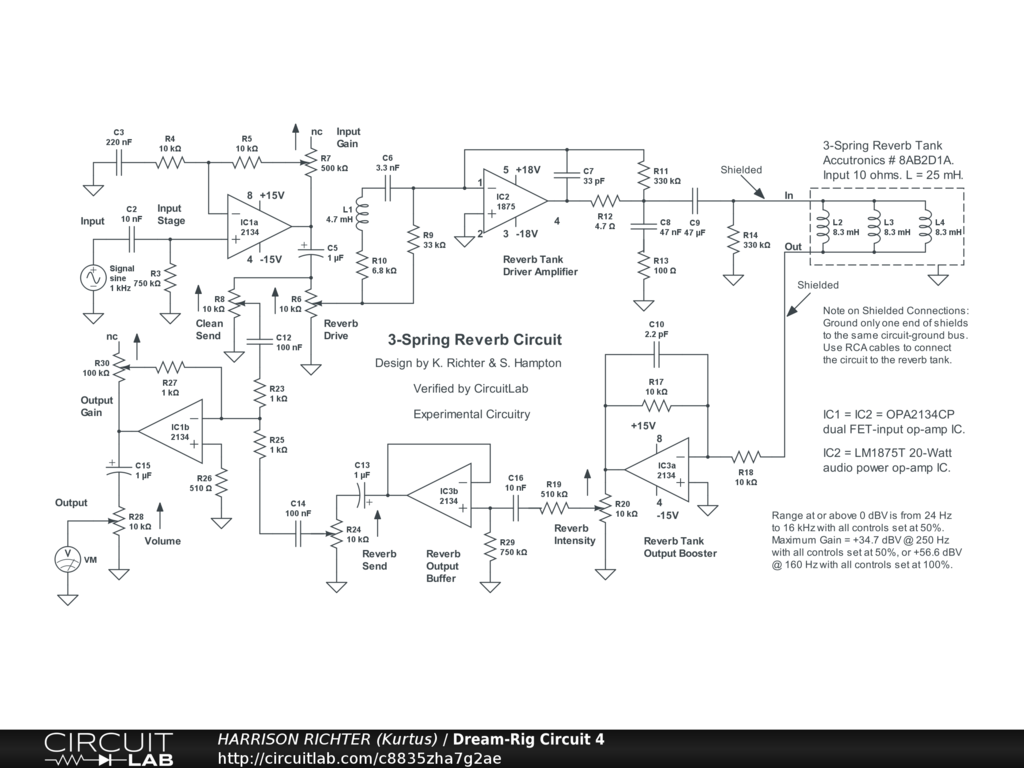

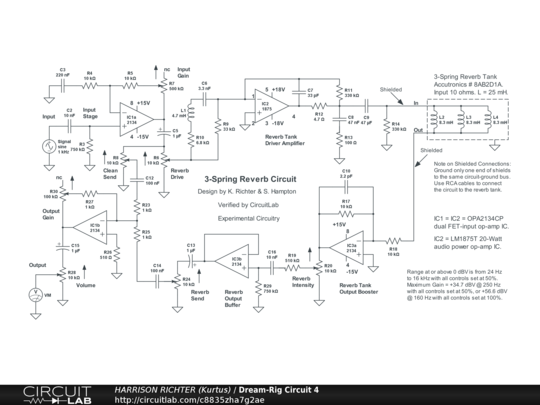

3-spring reverb for the Dream-Rig Project. Intended to follow the 1-of-4 Exclusive-Selector. For more information, besides what is included with the diagram, see my "Spring Reverb" circuit specifically.
