fan speed control PUBLIC

Created by
Created November 27, 2015
Last modified November 28, 2015
Tags fan

Summary

Control the speed of a fan with a potentiometer and MOSFET.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

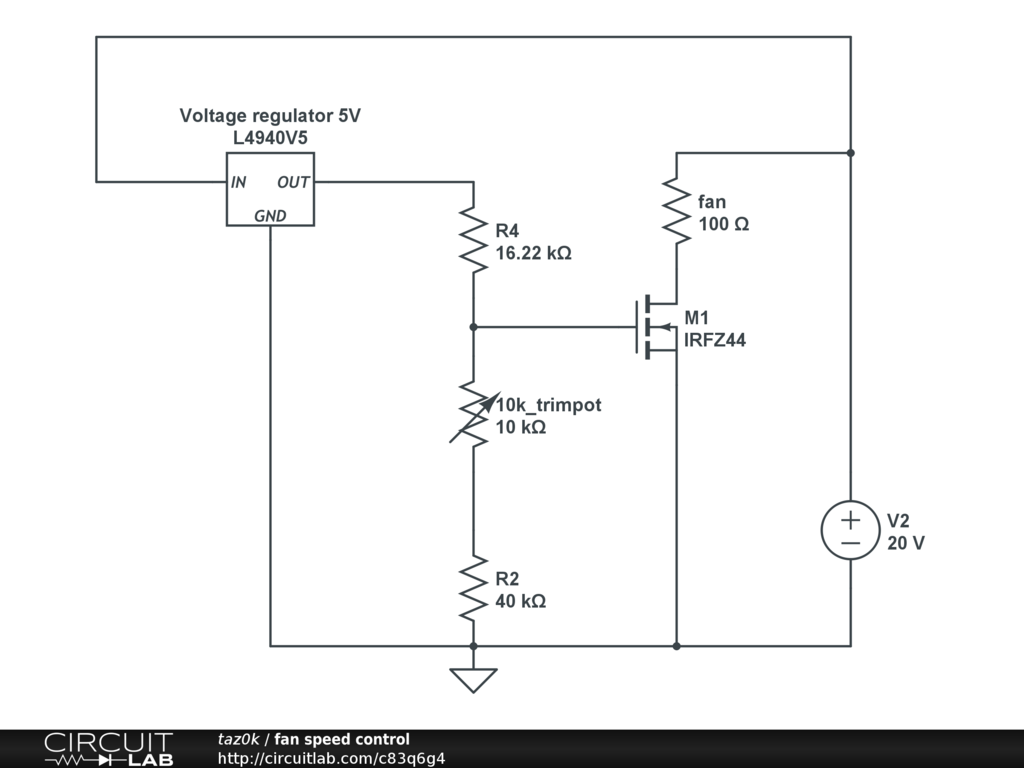

Control the speed of a fan with a potentiometer.

The potentiometer controls the resistance of the MOSFET from fully off to fully on.

V2 can be replaced with another voltage depending on what maximum volt you want.
