| Created by |
|
| Created | February 23, 2013 |
| Last modified | February 24, 2013 |
| Tags | No tags. |
Not provided.

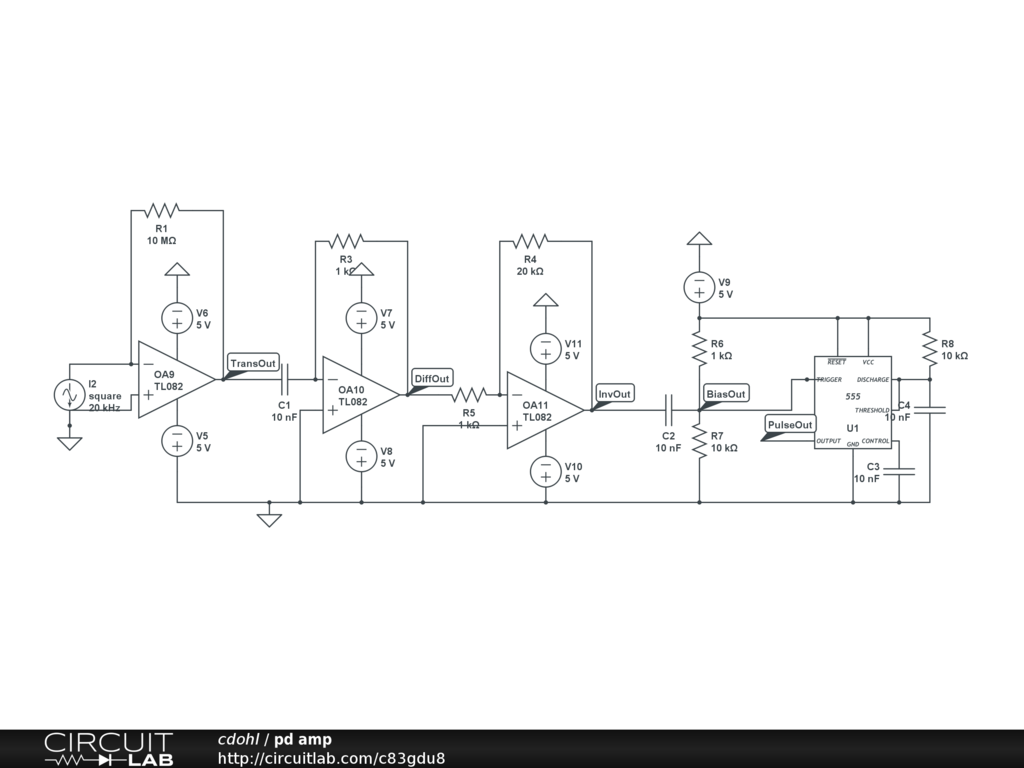

Photodiode amp which generates a TTL signal if a small variation of the PD current is registered. It uses 3 op amps and 555 timer.
