Created by
Created September 25, 2020
Last modified September 25, 2020
Tags arduino


Not provided.

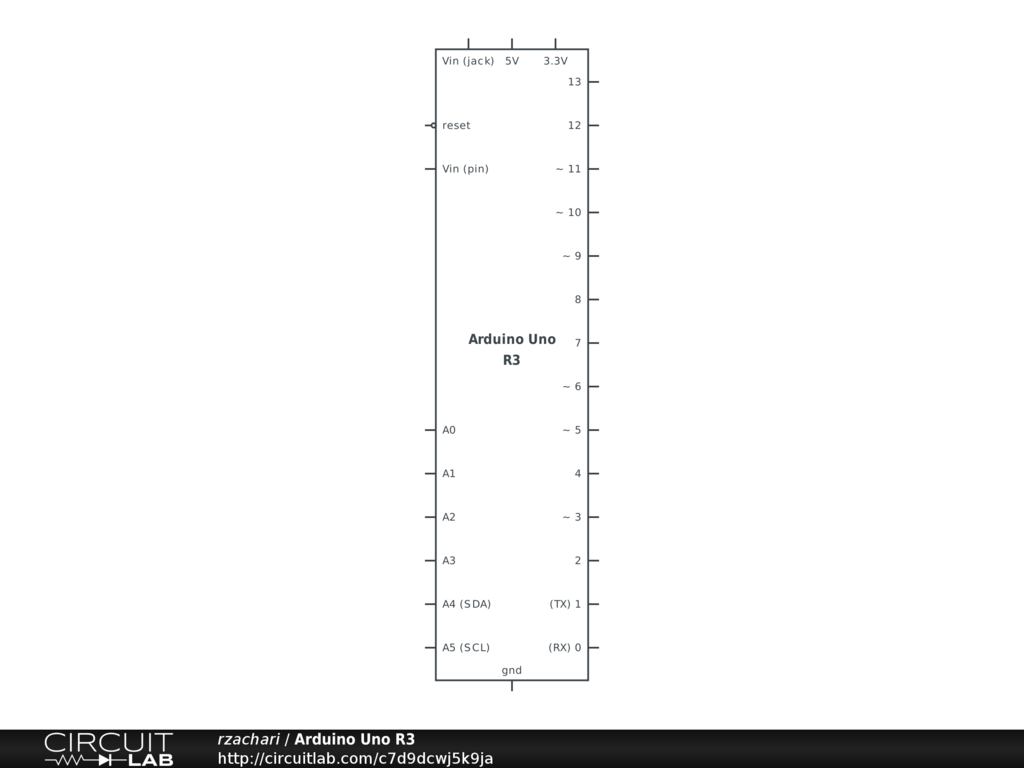

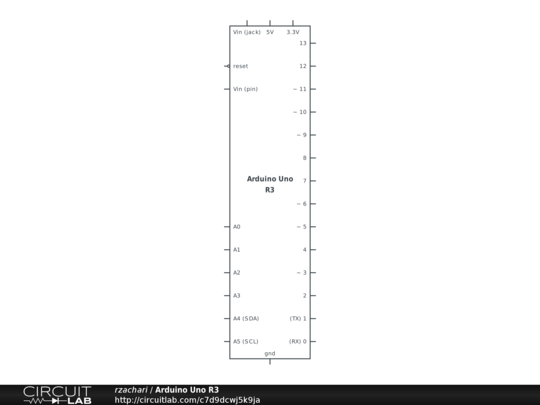

Pinout for Arduino Uno R3, as used in physical computing courses at IDeATe, Carnegie Mellon University.

Vin is listed twice for clarity (barrel jack and pin), though of course the two attachment points are electrically connected on the actual board.
