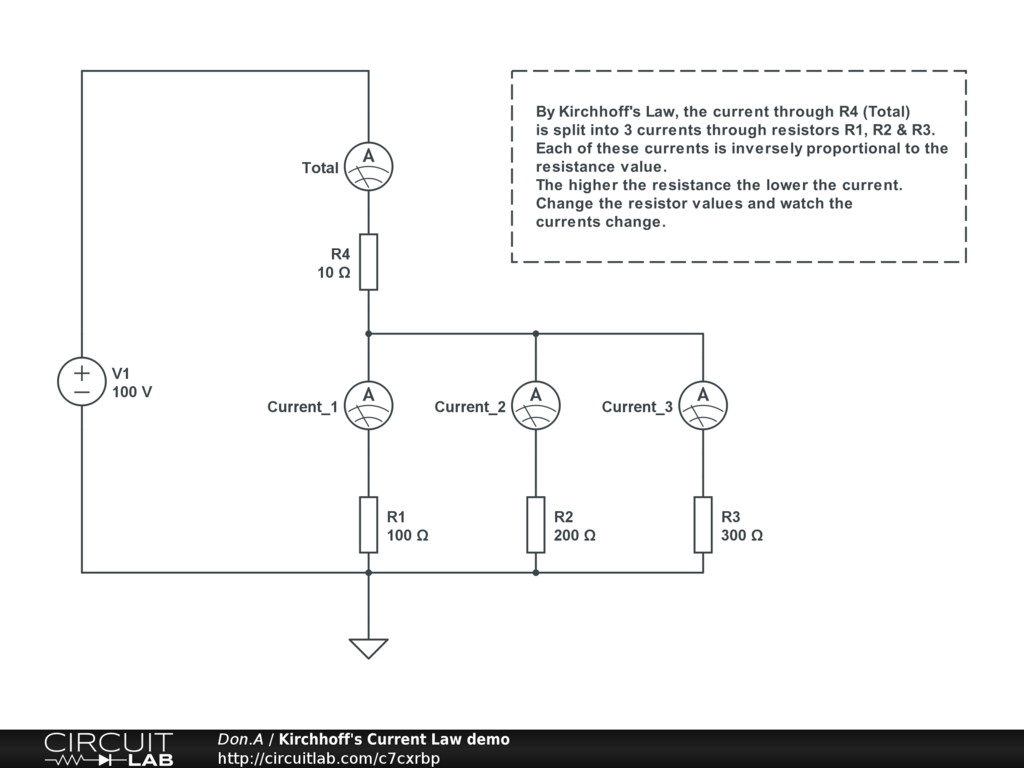

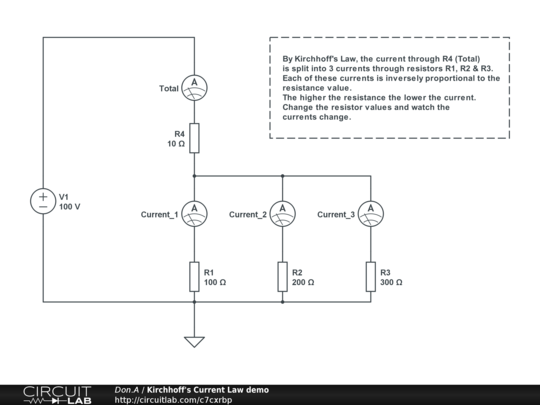

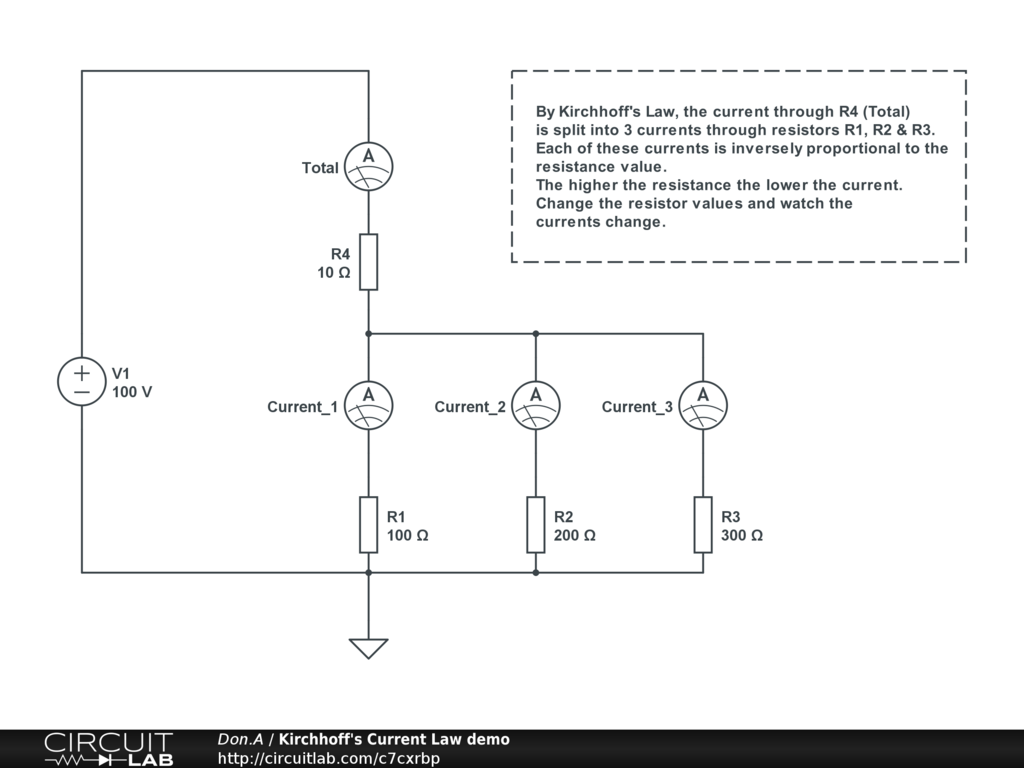

Circuit demonstrates interactively Kirchhoff's Current Law. Change the resistor values to view the results.


Using the DC solver all currents in the circuit are measured. The user can change the resistor values and review the results.

A physical Lab module is available from which enables students to use actual meters to gain practical measuring skills. These modules are powered by 12V Battery Packs of main 12V plug pack.
