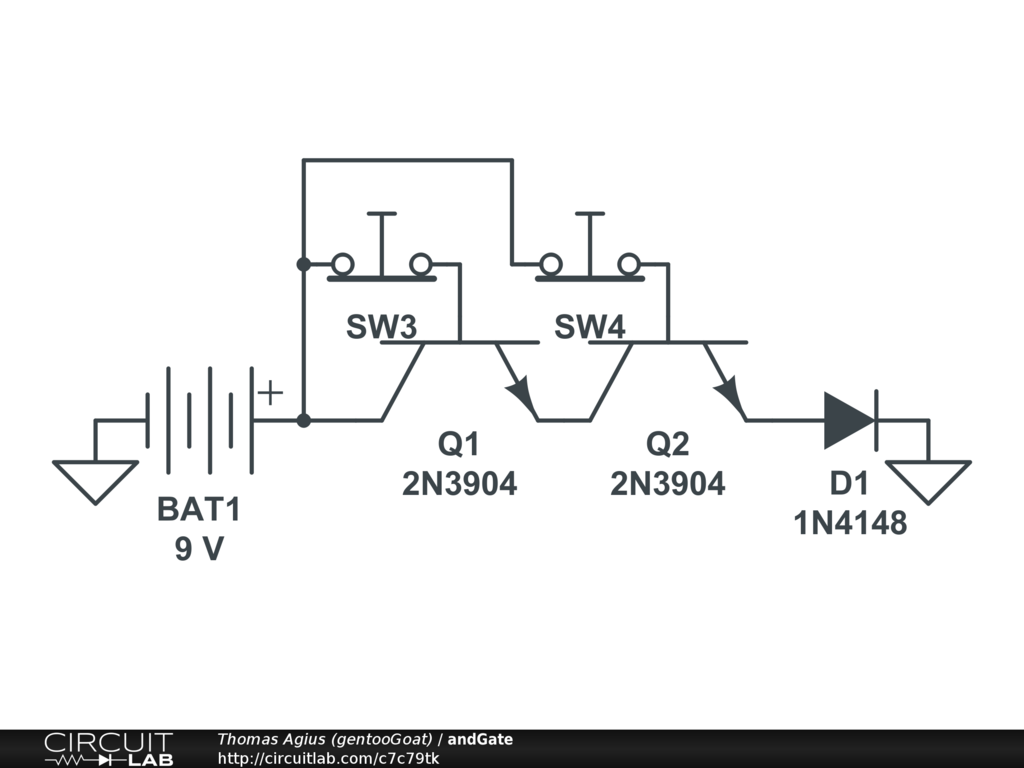

A circuit designed to give a bit output of 1 when both buttons are in the 'on' position.
00=0
10=0
01=0
11=1
In my quest to test my understanding of electronic logic, I am designing all the logic gates. Here is my first; the and-gate
