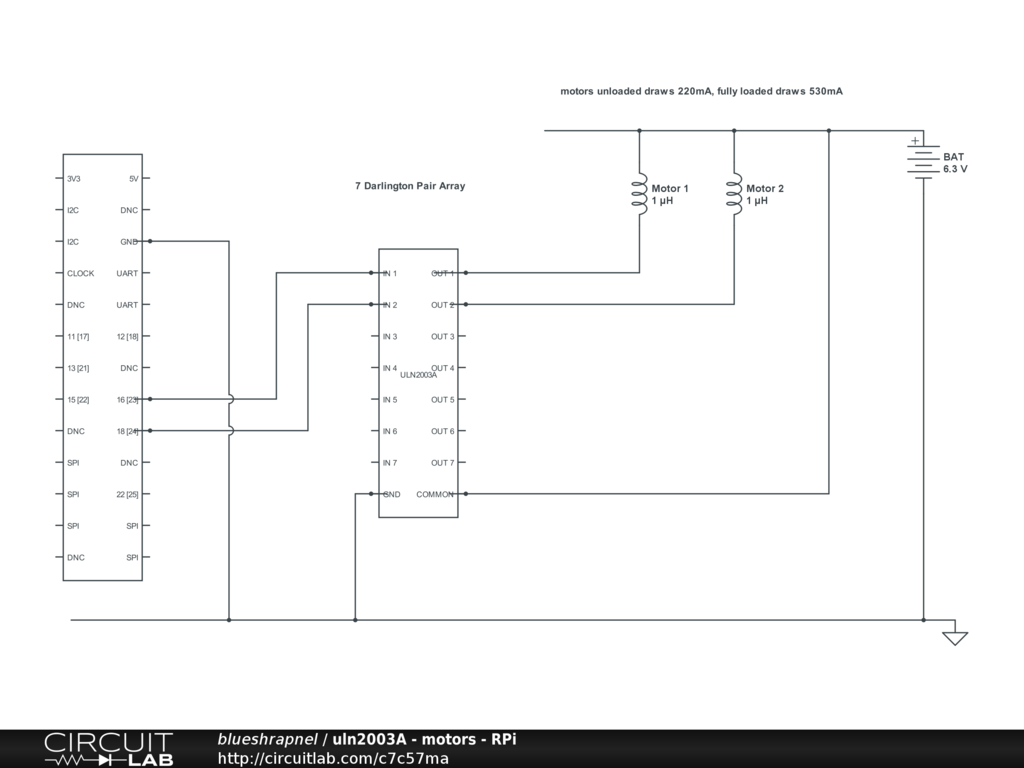

This is a very simple circuit to connect and control 2 motors with a raspberry pi and python. It is part of a very simply vehicle we are building. The aim is to add sensors, etc. to build a line following robot. The motors use their own 4 AA battery pack. The ULN2003A is a 7 darlington pair array.
