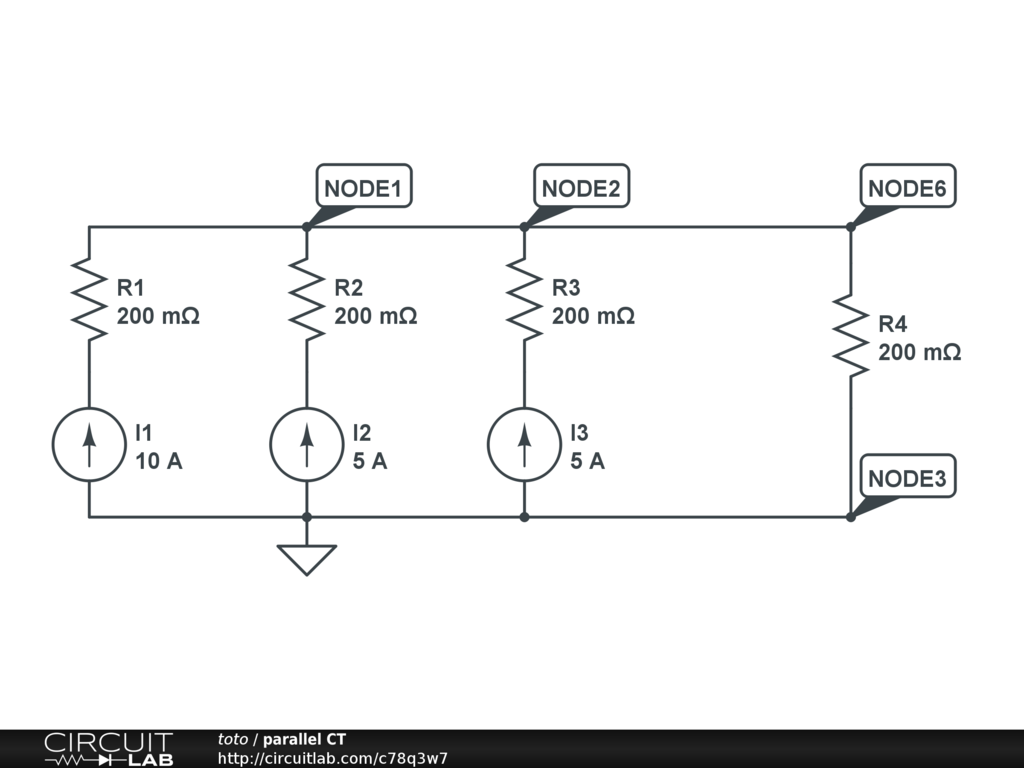

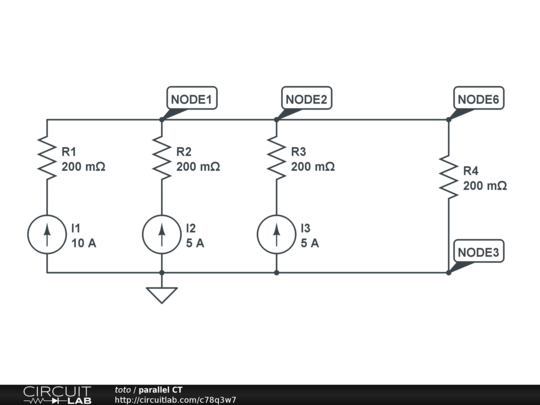

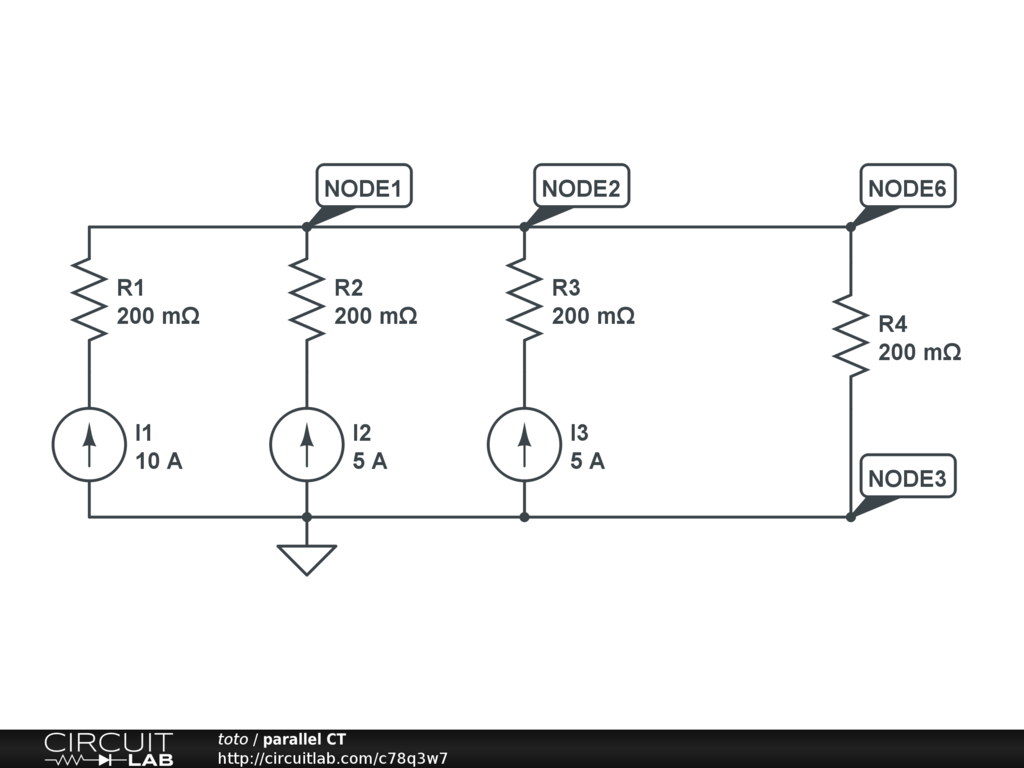

This is to simulate 3 CTs in parallel where 1 CT is operating at 2 x full-load rating (10 amps) while the other 2 CTs are operating at full-load rating (5 amps). This simulation shows that each CT shares the common burden by a factor in direct proportion to the ratio of individual CT current divided by the overall current at the common node, that is, CT1/(CT1 + CT2 + CT3).
