In a Voltage Controlled Voltage Source (VCVS), the voltage difference across this element depends on a voltage difference elsewhere in the circuit, multiplied by some gain.

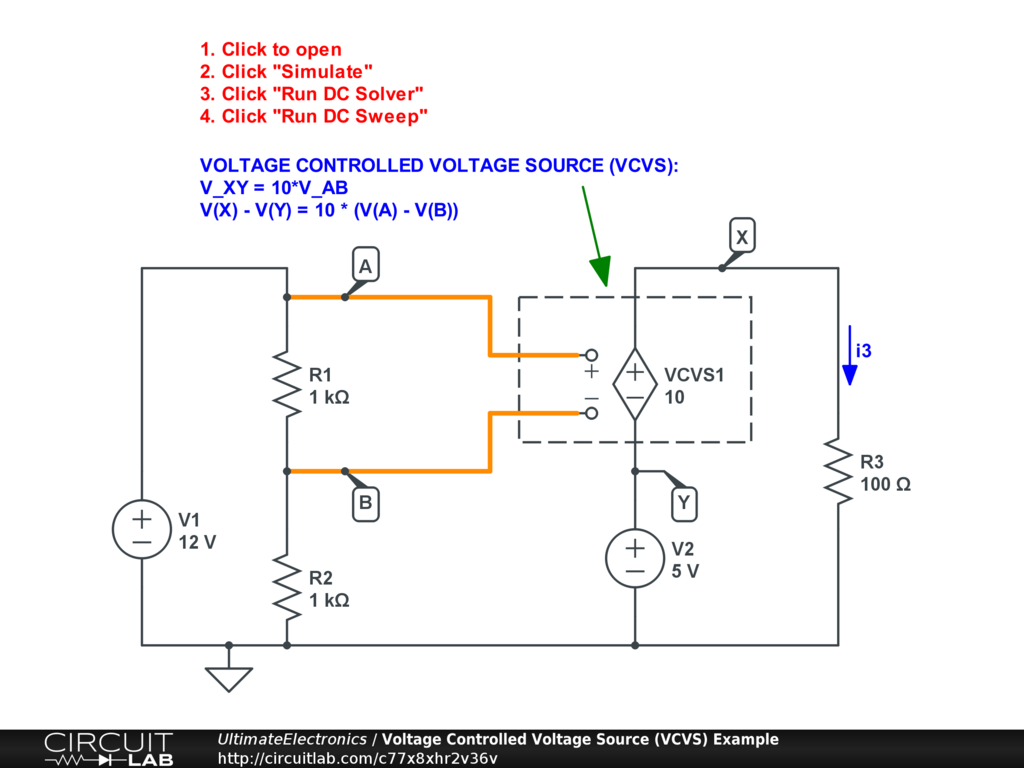

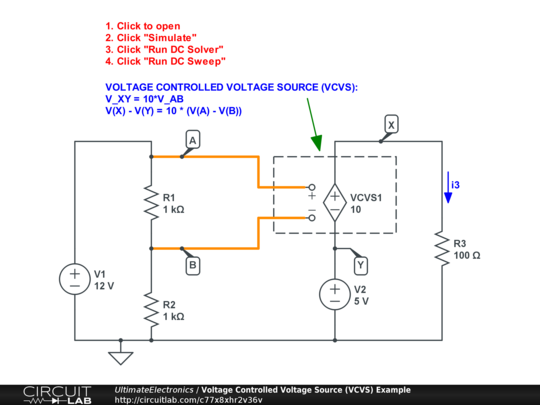

This example is from the Dependent (Controlled) Sources chapter of Ultimate Electronics Book. It shows a DC Sweep simulation where the voltage difference across the VCVS1 component depends on the voltage difference elsewhere in the circuit.
