Canon DSLR auto trigger external circuit for Arduino

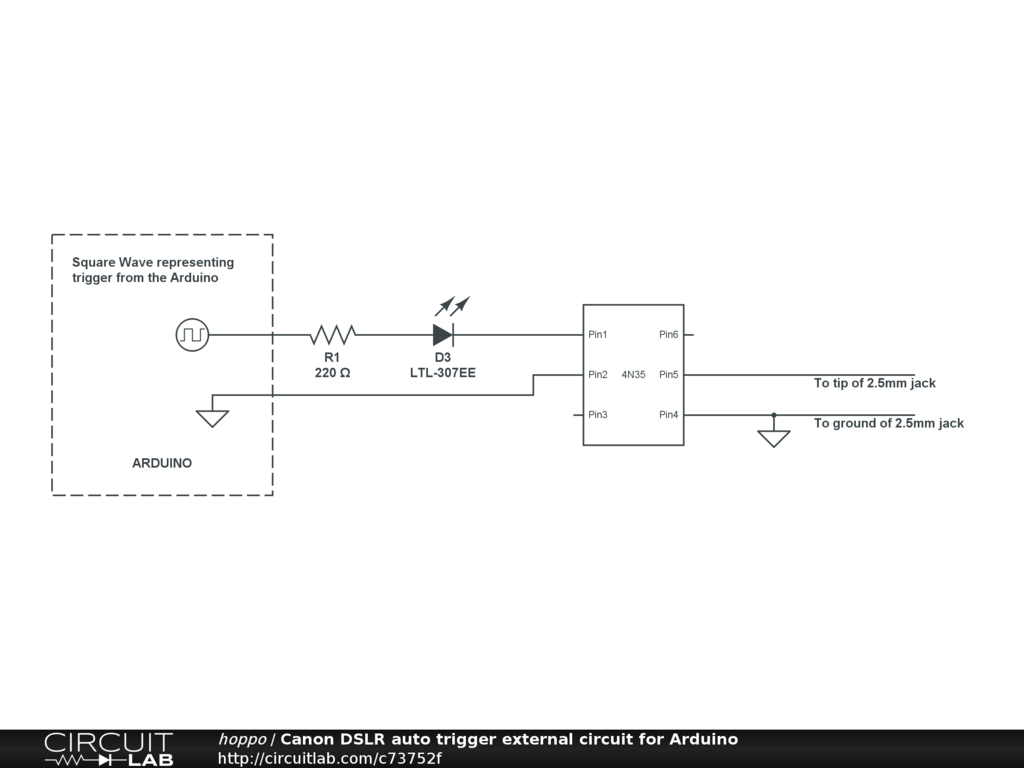

Connected to an arduino this circuit will trigger the shutter on a canon DSLR. It will probably work for many other cameras too.
