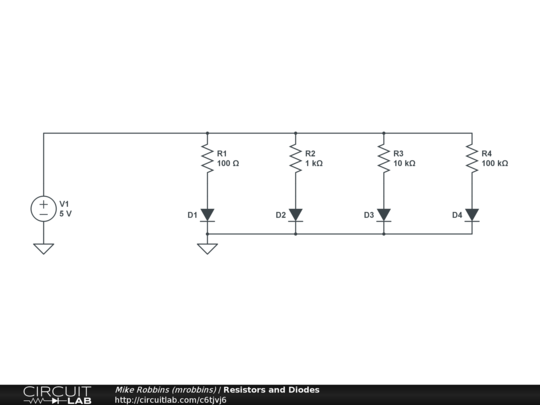

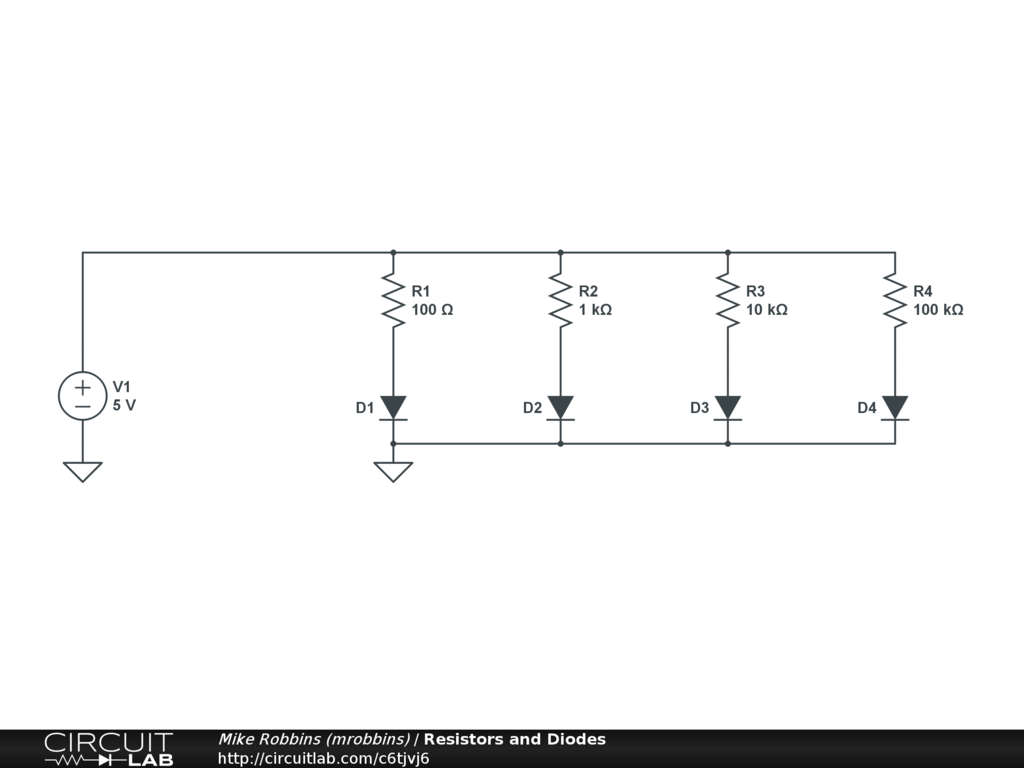

Four identical diodes with different series resistors. See how the current and voltage varies between the four.

The currents adjust almost inversely proportional to the resistor values.

However, the diode voltage drops don't change very much!
