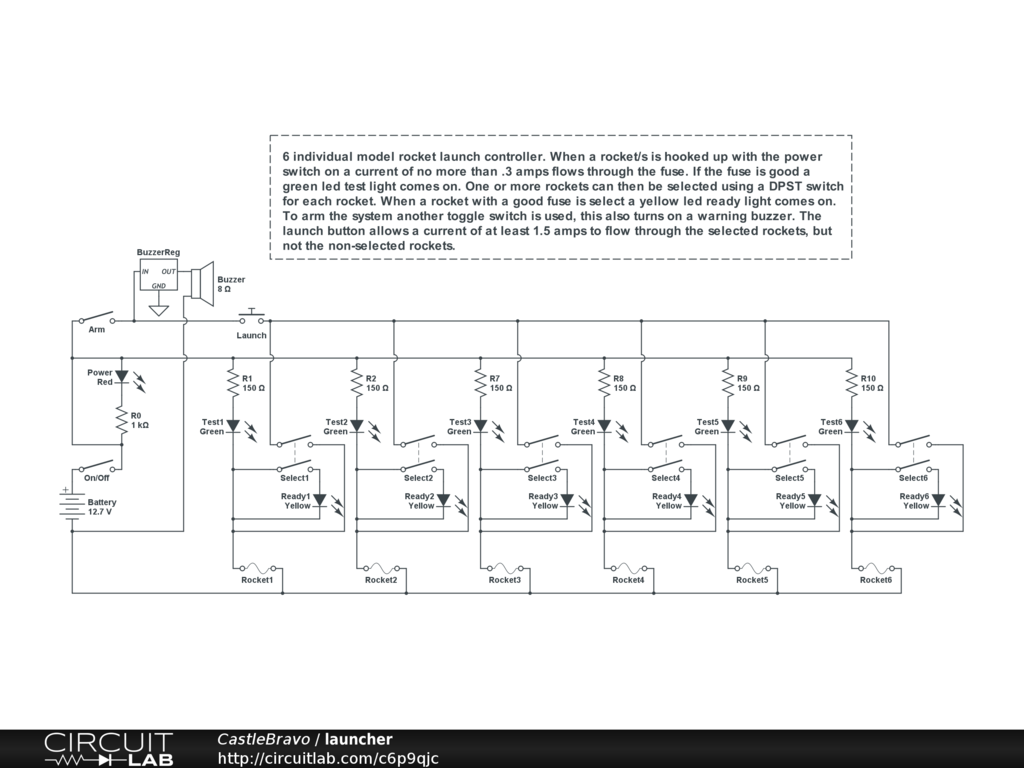

6 individual model rocket launch controller. When a rocket/s is hooked up with the power switch on a current of no more than .3 amps flows through the fuse. If the fuse is good a green led test light comes on. One or more rockets can then be selected using a DPST switch for each rocket. When a rocket with a good fuse is select a yellow led ready light comes on. To arm the system another toggle switch is used, this also turns on a warning buzzer. The launch button allows a current of at least 1.5 amps to flow through the selected rockets, but not the non-selected rockets.
