Tags ammeter   cx102b   panel-meter   voltmeter

Summary

CX102B panel meters set up as voltmeter and ammeter on an ATX-based variable power supply


Description

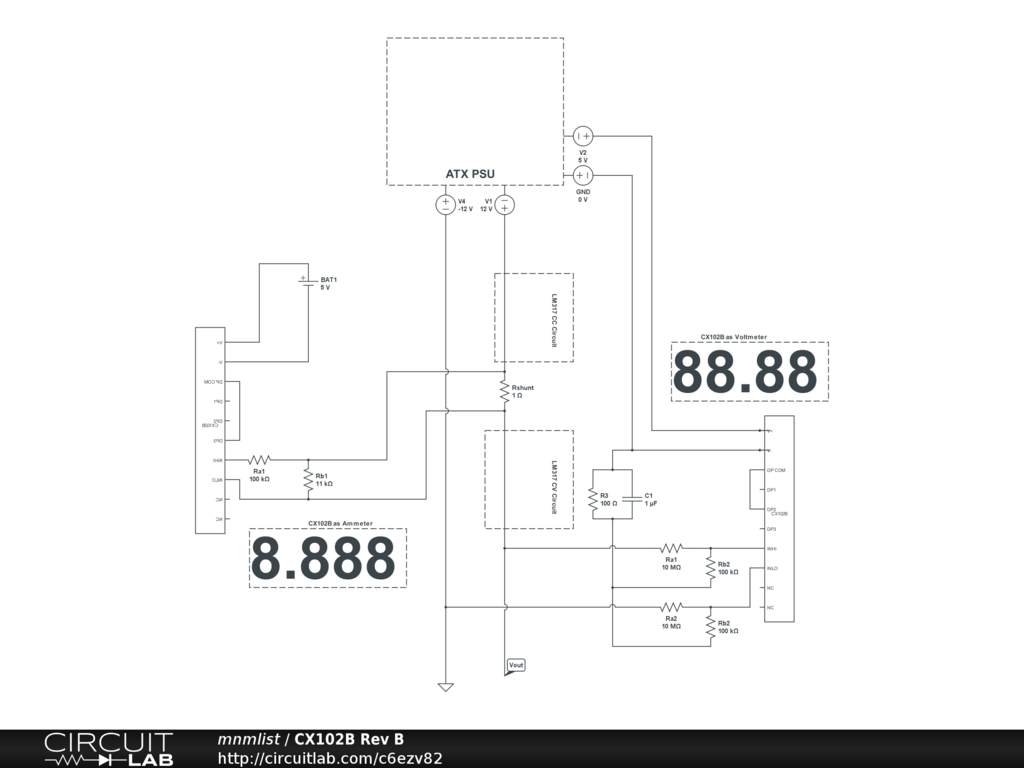

Circuit to get two CX102B panel meters to work as voltmeter and ammeter on a basic LM317 based variable current / variable voltage power supply using an ATX power supply.

Note: CX102B designed to work on common ground, as configured for the voltmeter in diagram. However, when both meters were connected to common ground, meters were damaged.
