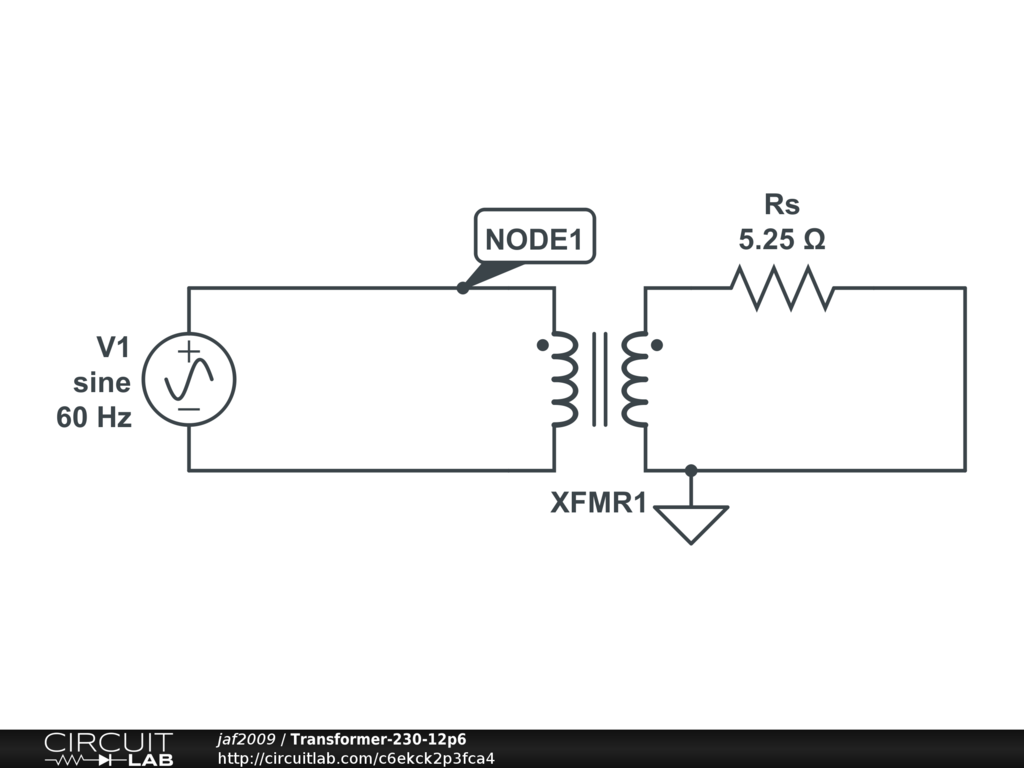

I am trying to model a Tamura PL30-12-130B. According to Tamura's data sheet using the primary and secondary in series configurations, with a primary voltage of 230AC, the secondary should be capable of 12.6AC-2.4Amps. The T-D simulation provides voltages (peak primary and secondary) and secondary current that seem correct, however the primary current is far in excess of anything normal. What is incorrect in my model?

by jaf2009
September 02, 2020
