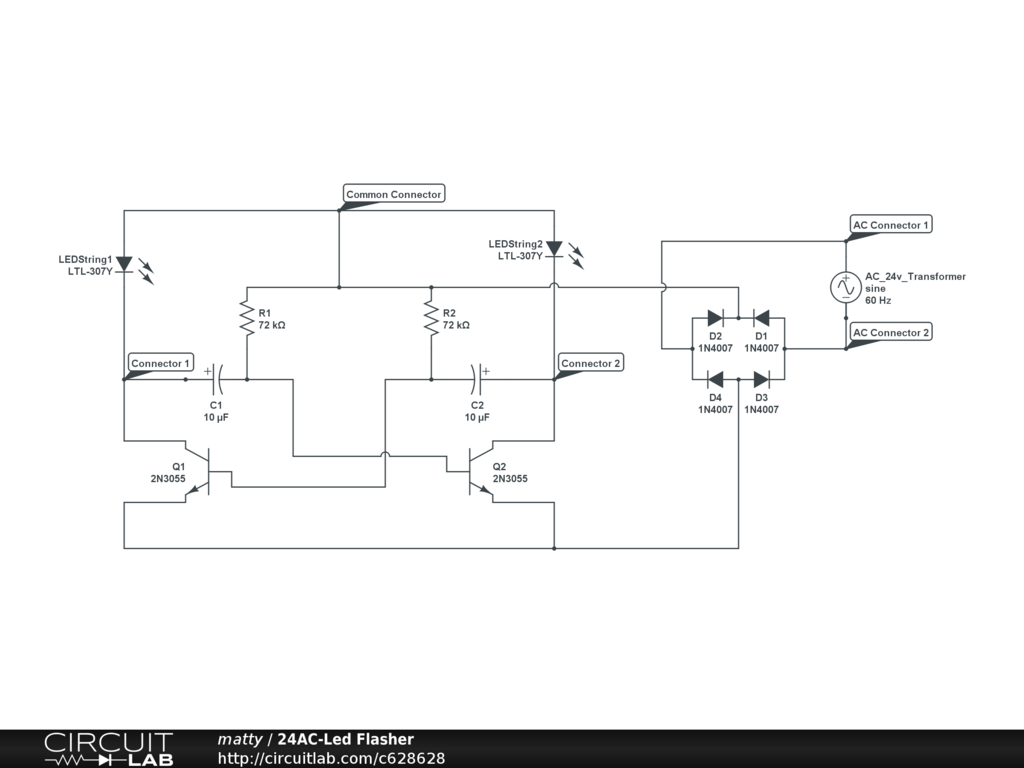

An experimental flash circuit for LED from a common 24V AC transformer I have tagged where the connectors would be

2 AC inputs 1 common Cathode and 2 anodes the 2 LED channels would share the cathode but have a separate anode ie 3 wires

I think it should handle a few amps but I only intend to send 1 or 2 amps on this circuit.
