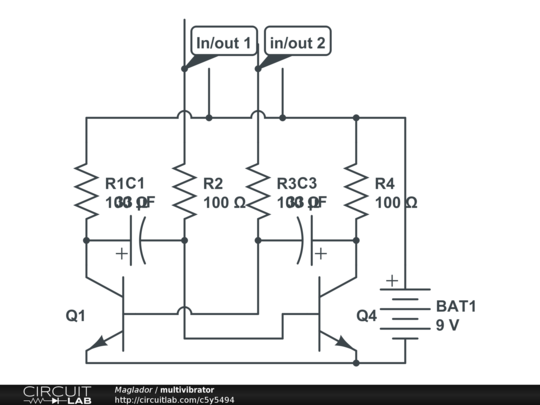

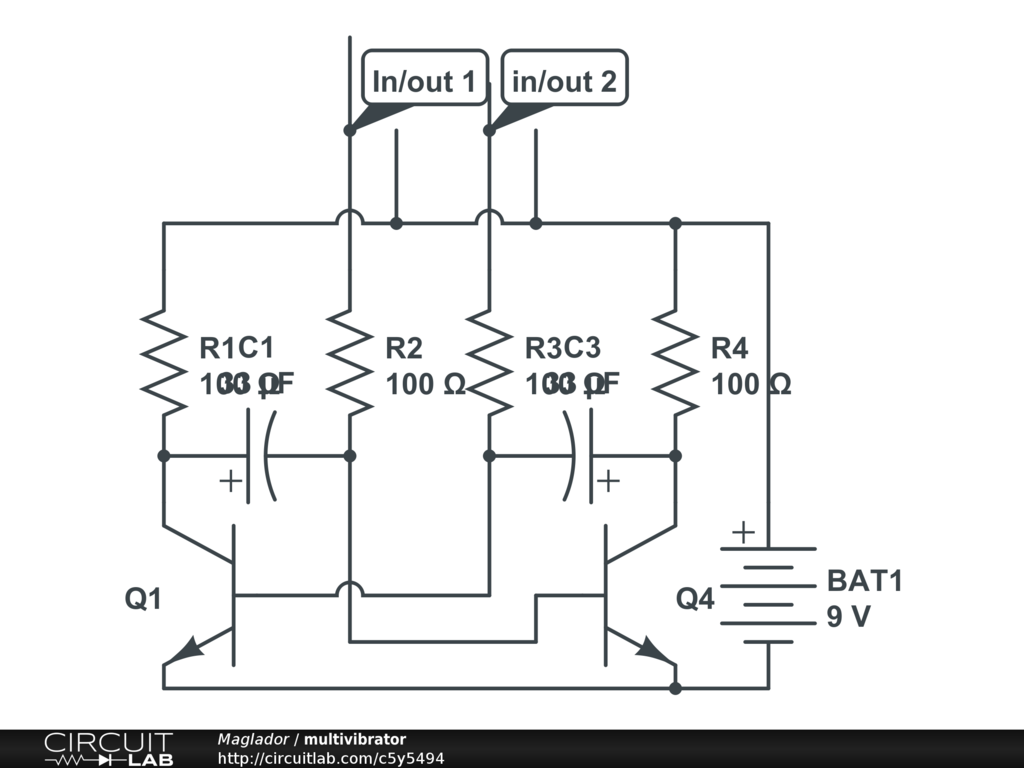

a circuit that generates timed pulses. useful for timing chips such as 4017 decade counter or 555 timer. makes a good learning circuit.


Not provided.


that battery should be 4.5 V, not 9. I meant to change that.

by Maglador
May 03, 2013

Try selecting the right part of the circuit and dragging it away so you have more space for the capacitor and resistor values so they don't overlap. Also if you right click on the resistor and Flip horizontally then the value shows on the other side. Also I think that 100ohm on the collector is pretty low . It will consume alot of power and if you are using a 9v battery then the voltage will drop alot .(in my opinion)

by shagas
May 03, 2013
