Digitally controlled analog synthesizer.

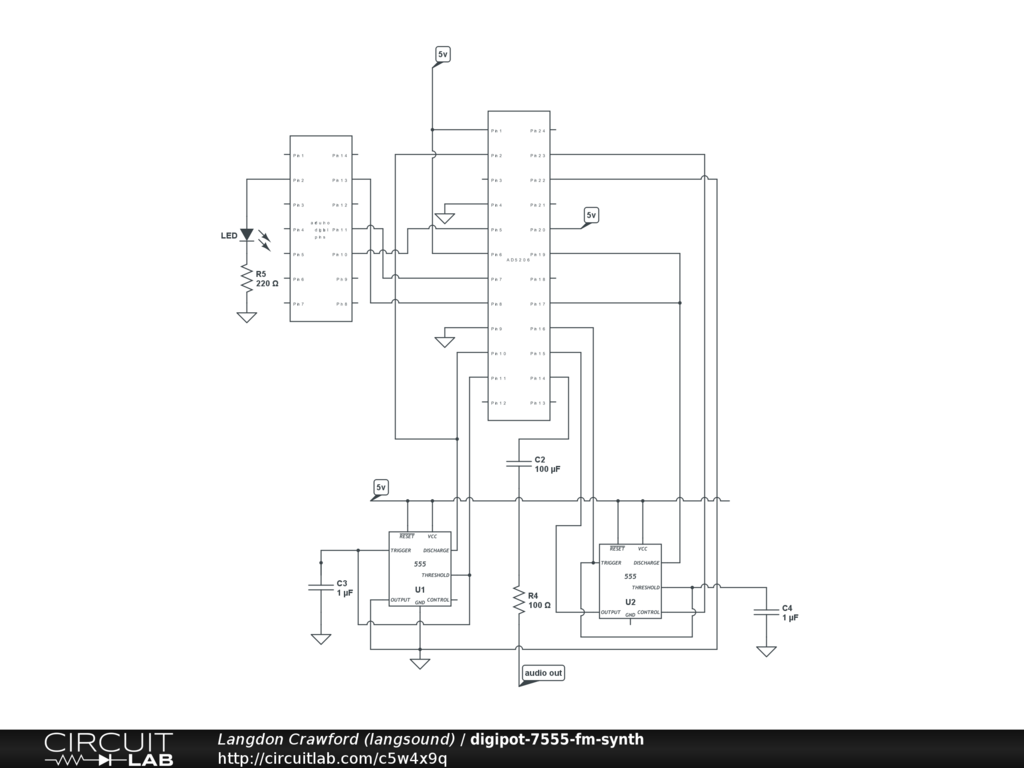

This circuits provides digital control of two 7555 astable oscillators configured for FM synthesis. Controlling this circuit requires a microcontroller running a small SPI program. The Arduino has an demo program in the examples menu.
