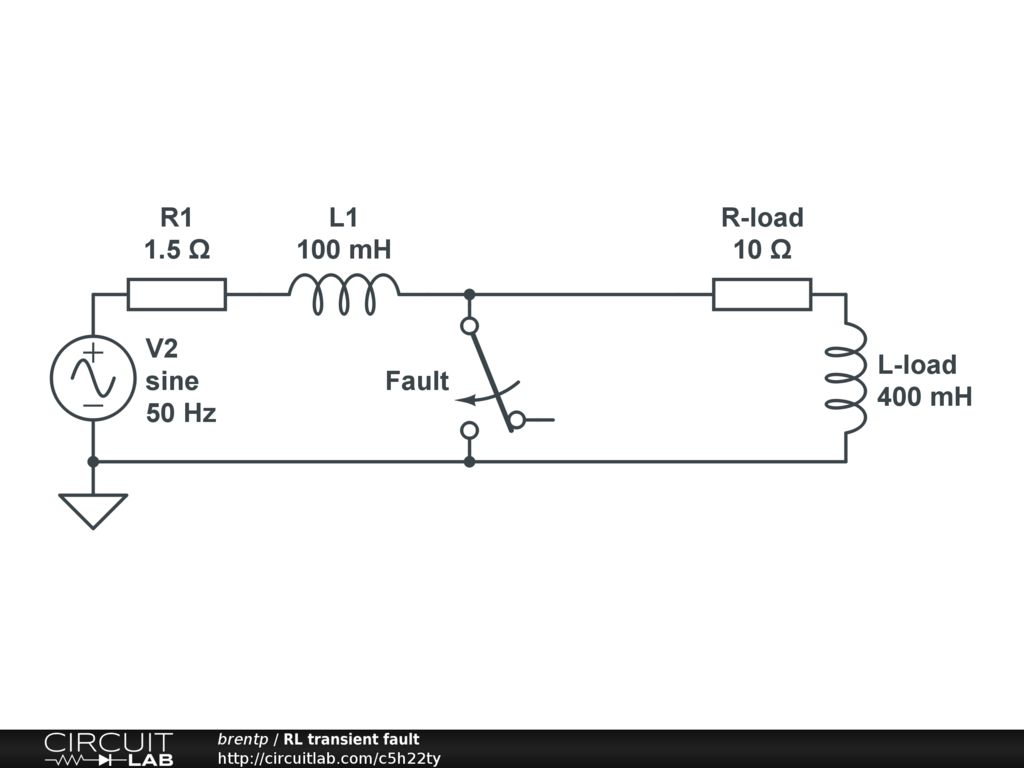

This circuit provides a simple example of an AC source and load, with a line impedance, where a short-circuit fault occurs across the load.
Use the time-domain simulation to observe the effect on the current drawn from the source.
