Laplace transform step response and Bode plot

Created by	Circuit Lab (CircuitLab)
Created	November 13, 2011
Last modified	June 07, 2017
Tags	bode laplace

Summary

CircuitLab can also handle arbitrary Laplace transform functions, and can produce step response plots in the time domain and Bode plots in the frequency domain.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Description

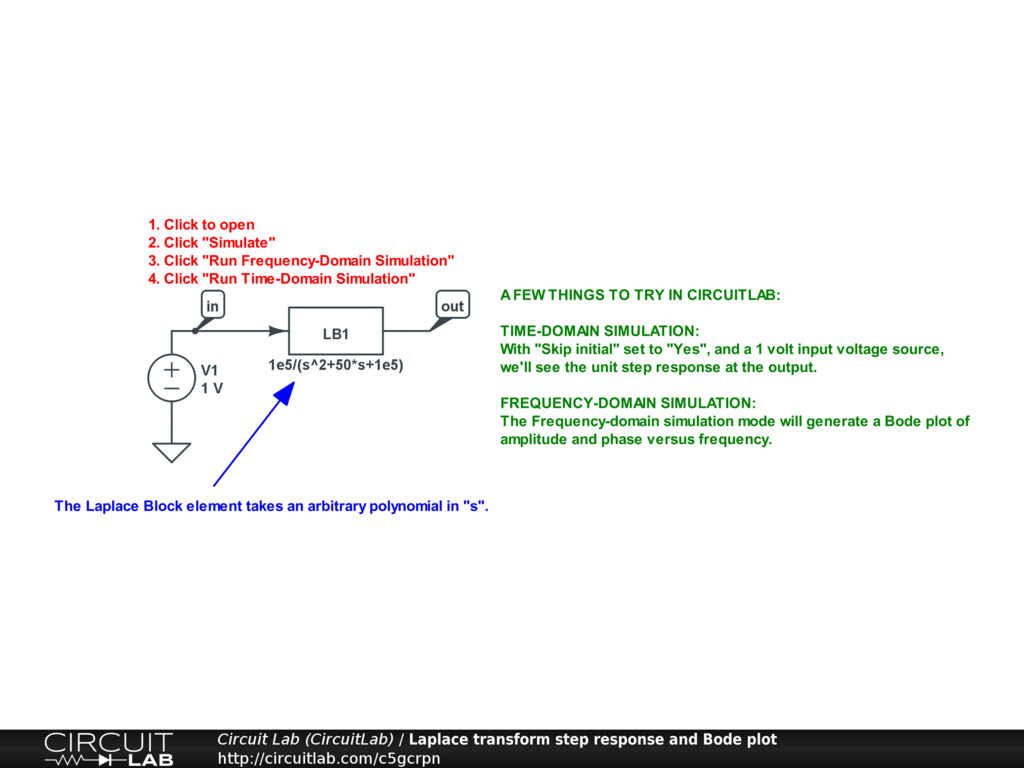

The Laplace Block element takes an arbitrary polynomial in "s".

A few things to try in CircuitLab

Time-domain simulation

With "Skip initial" set to "Yes", and a 1 volt input voltage source, we'll see the unit step response at the output.

Frequency-domain

The Frequency-domain simulation mode will generate a Bode plot of amplitude and phase versus frequency.

Comments

classic, you can have such fun with this. will need to find a way to simulate a unit impulse

by robint
March 21, 2014
