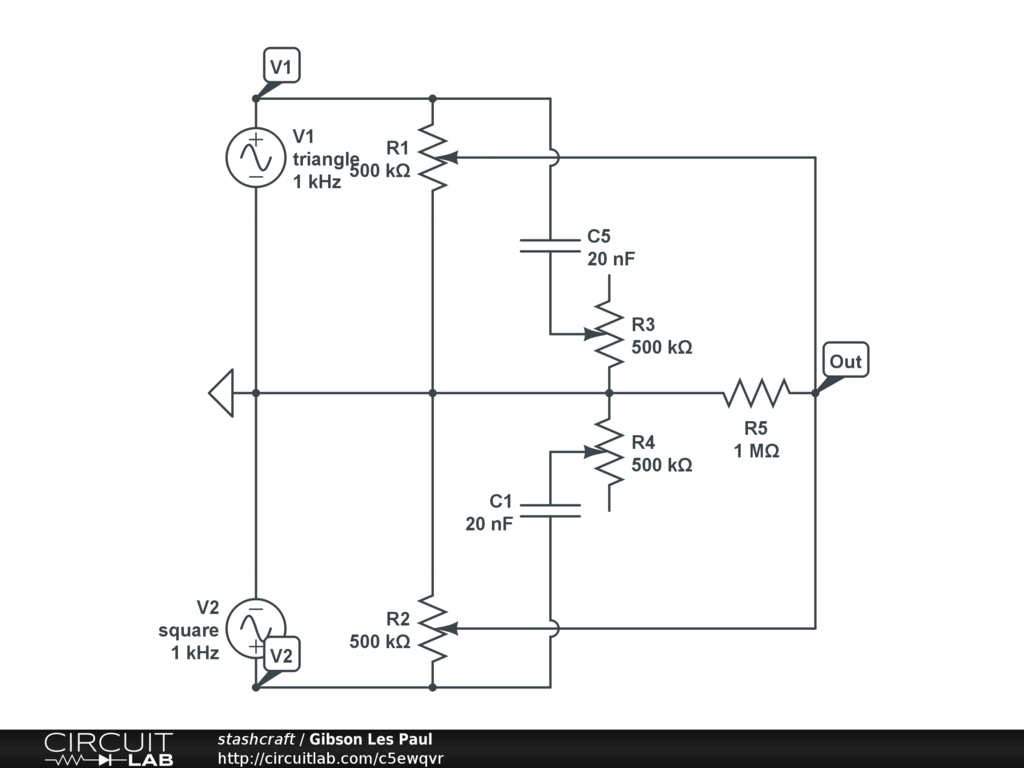

A quick sketch of the circuitry of a Les Paul. Doesn't take the inductive qualities of the pickups (voltage sources) into account. Used to compare with a ES-335 copy that I own.
Not provided.
