Summary

Reverse engineered Bosch ignition module as used in Mercedes-Benz W116 V8 models.


Description

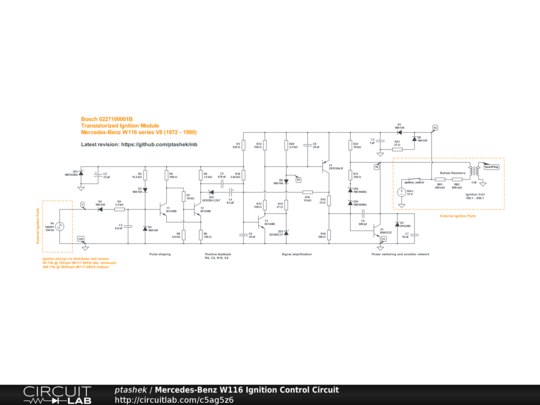

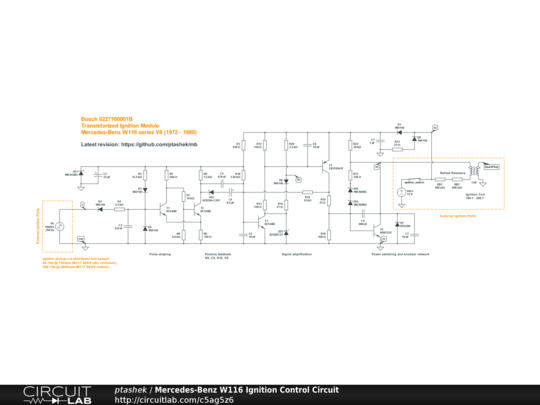

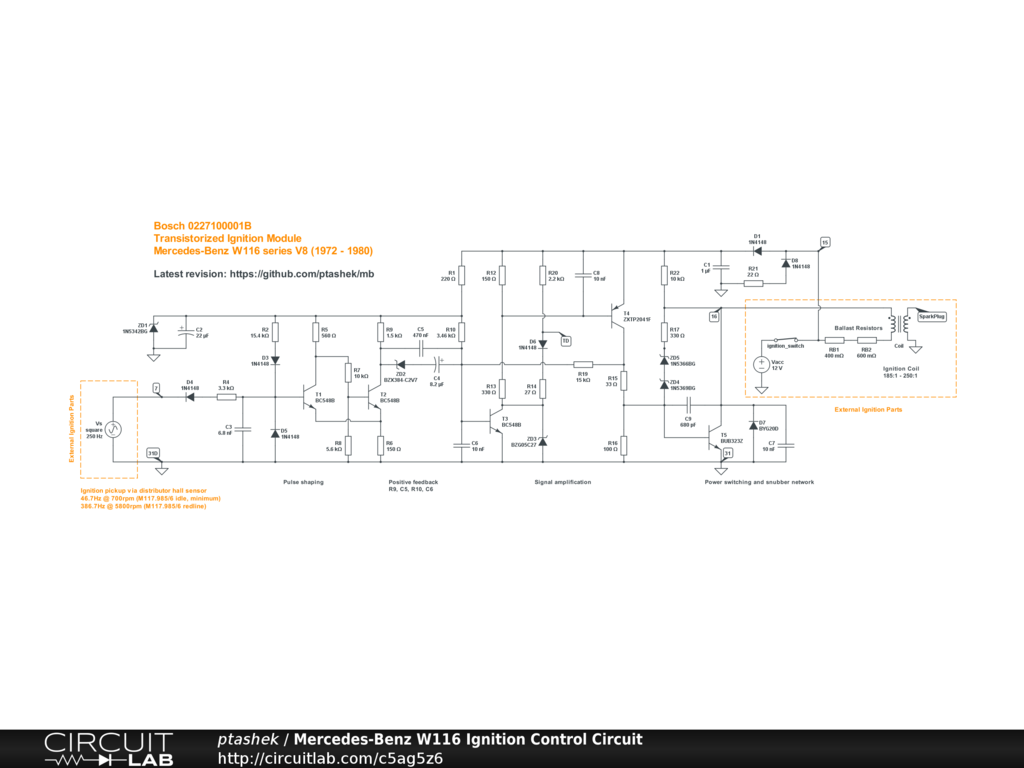

Reverse engineered Bosch ignition control circuit as used on Mercedes-Benz W116 series cars, with the V8 M117 series engines, between 1972 and 1980.

Latest revision, with 3D model of the module housing, is available on GitHub.
