Multimeter 9V power from NiMH battery

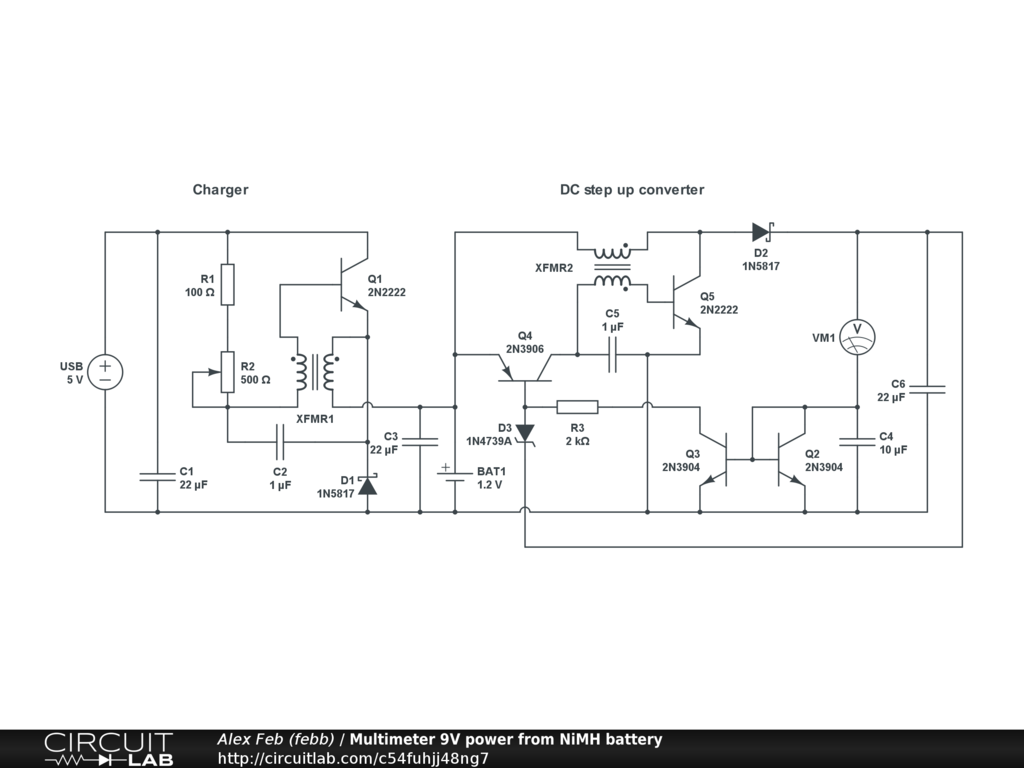

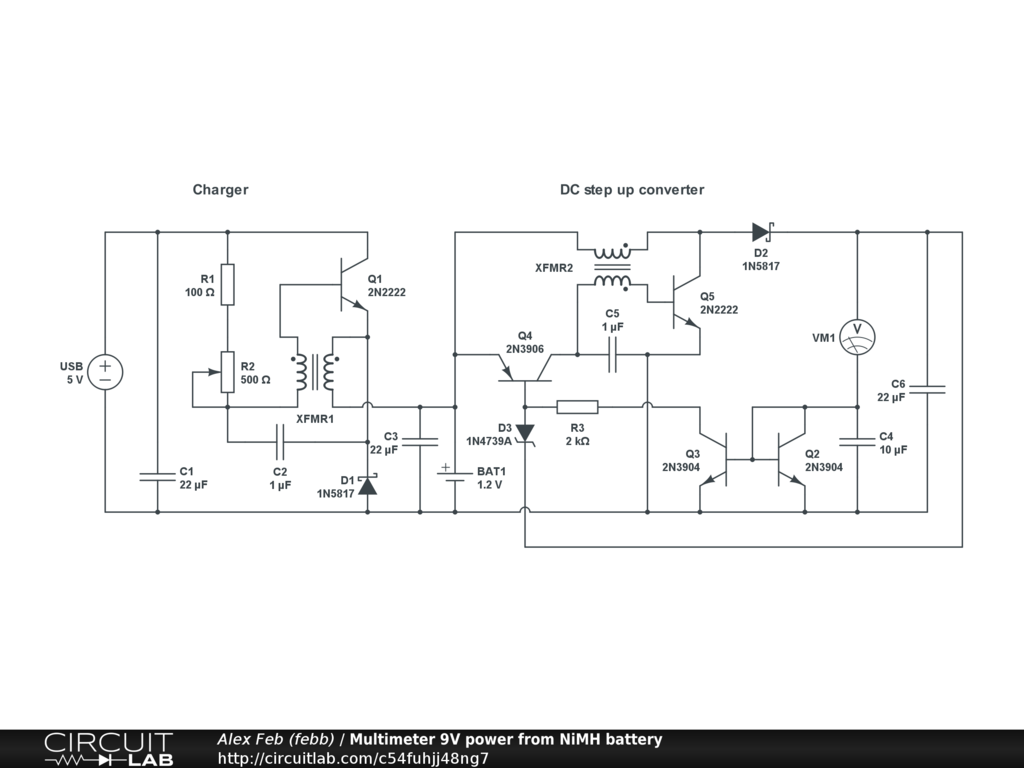

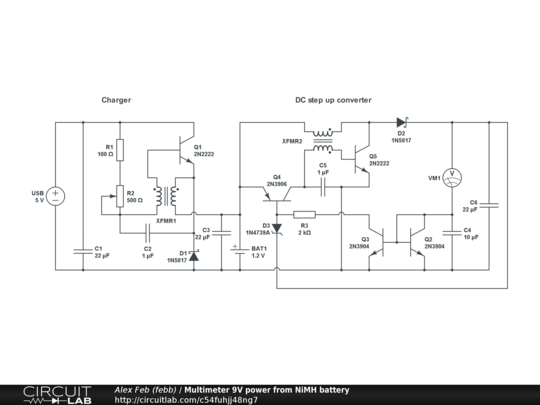

Simple DC converter and charger to use NiMH battery
with 9V multimeter.
Auto shutdown current < 5 uA.
