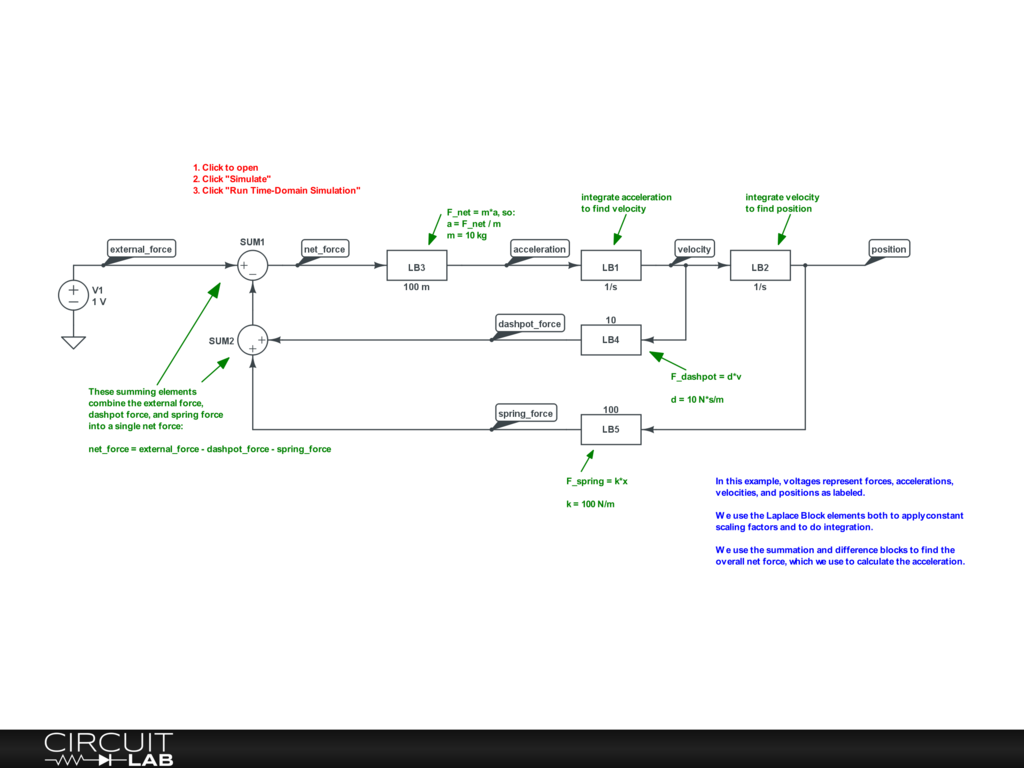

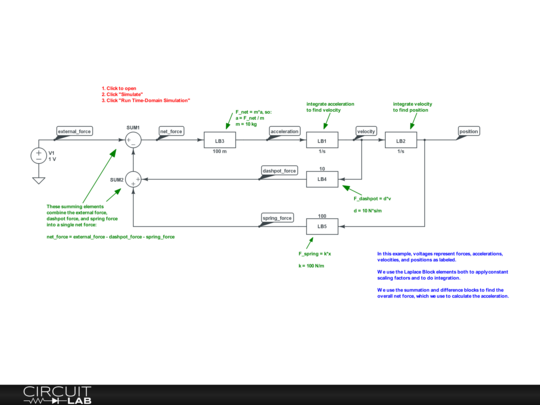

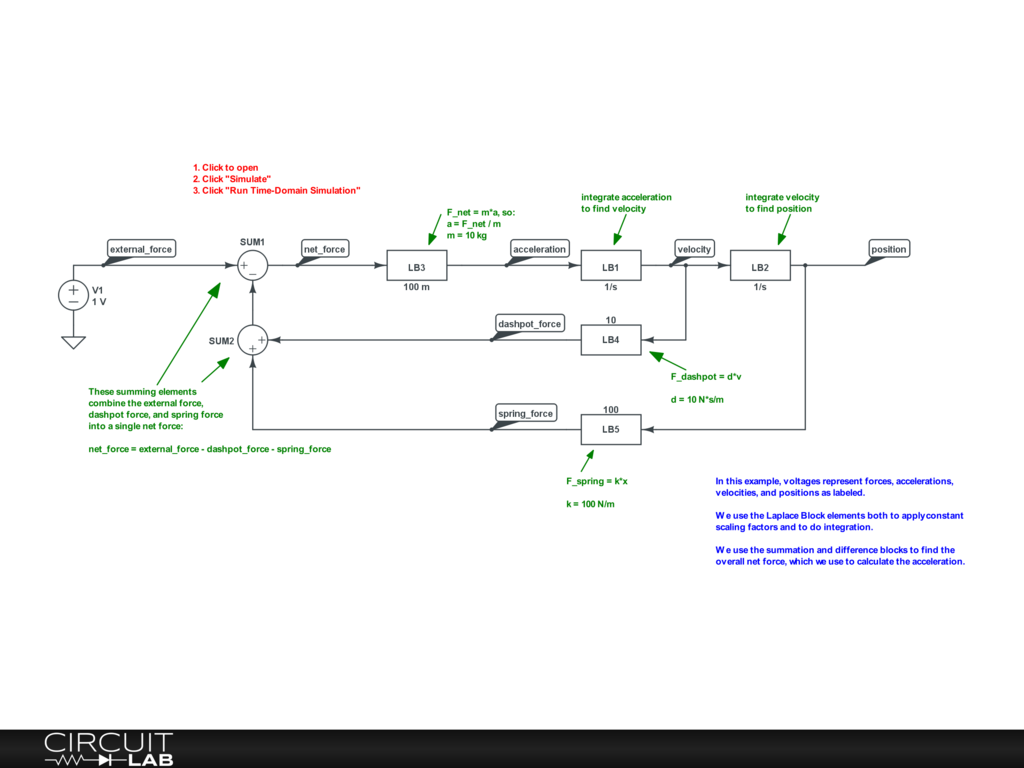

Laplace Blocks can be used to create integrators and gains, which can then be used to simulate a mechanical spring-mass-dashpot mechanical system.


This example is from the Lumped Element Model chapter of Ultimate Electronics Book. Differential equations representing a spring-mass-dashpot mechanical system can be modeled with Laplace Blocks, used to create gain and integrators.
