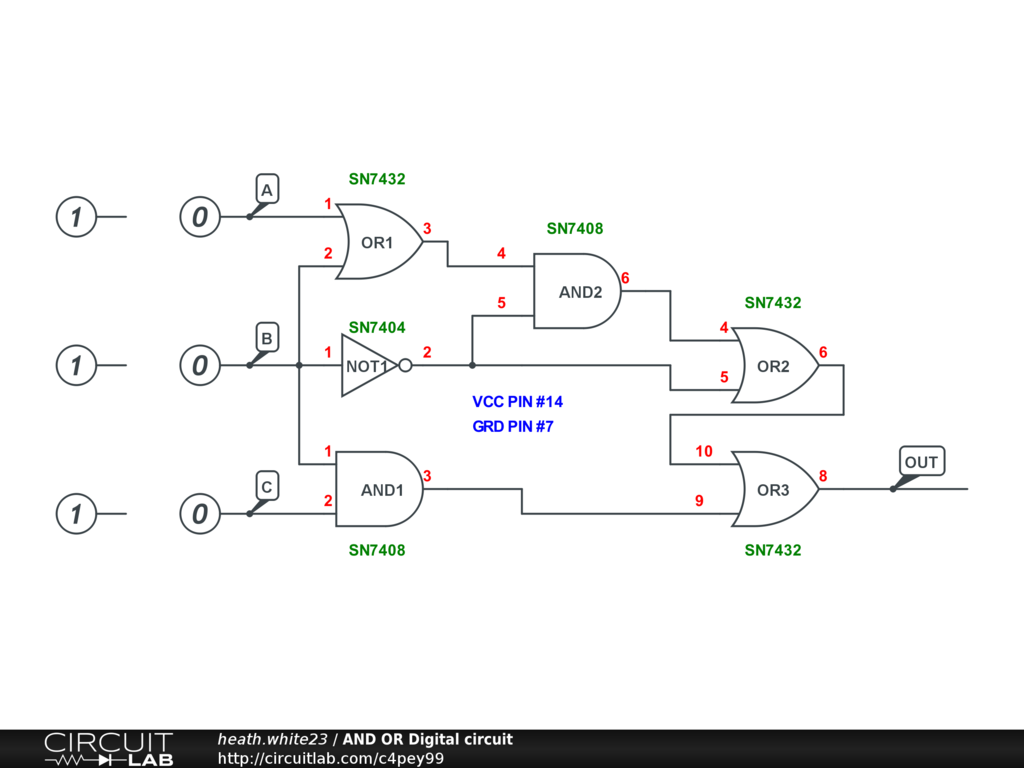

A simple 3 input digital circuit. Outcome of the 8 different combinations comes out to be 6 1's and 2 0's.
