BAOFENG GT-5R USB charger PUBLIC

Created by
Created November 10, 2021
Last modified January 06, 2022
Tags No tags.

Summary

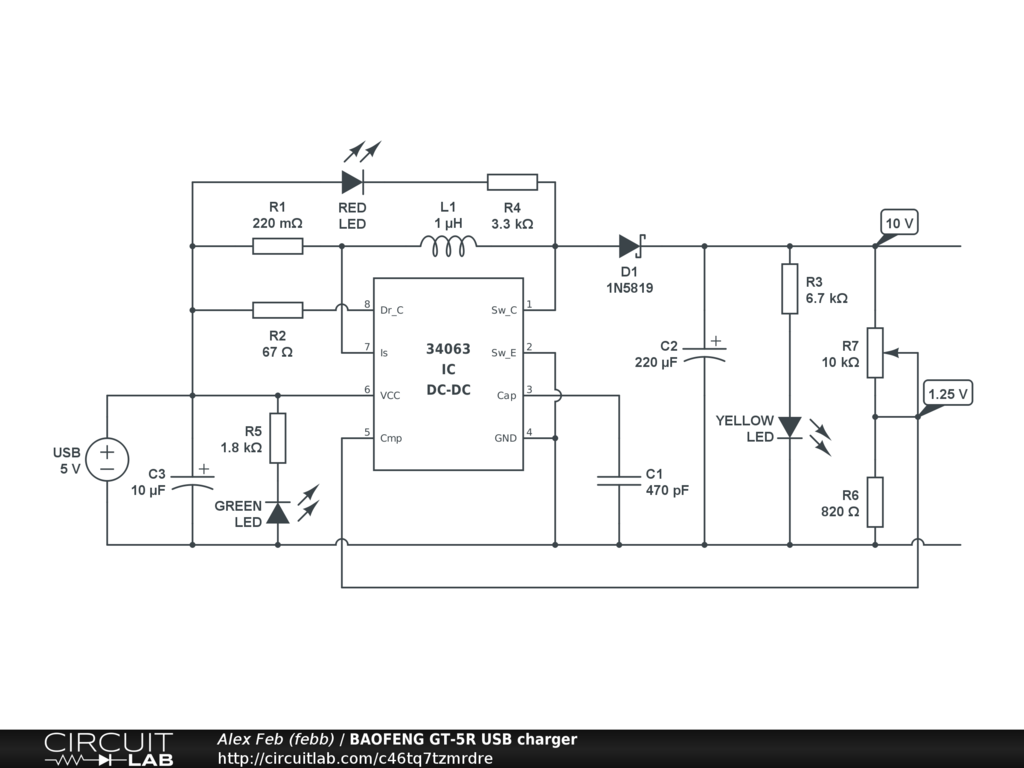

Simple USB to 10V DC-DC converter to charge ham radio

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

Not provided.
