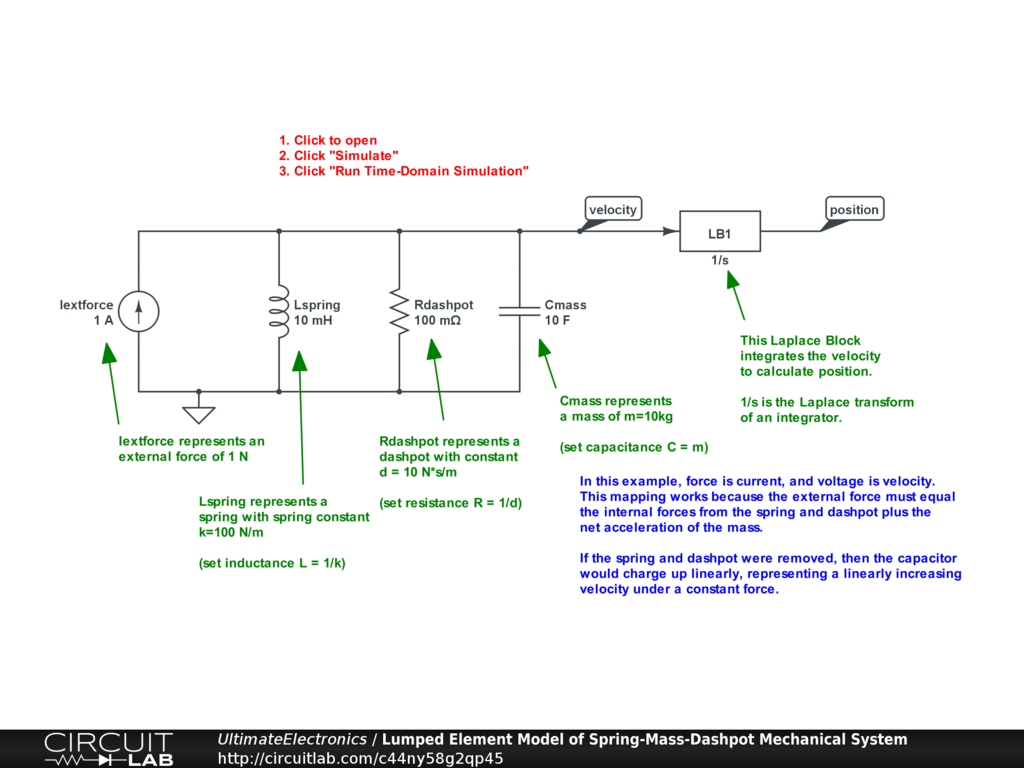

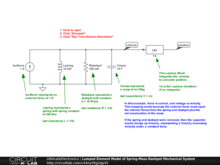

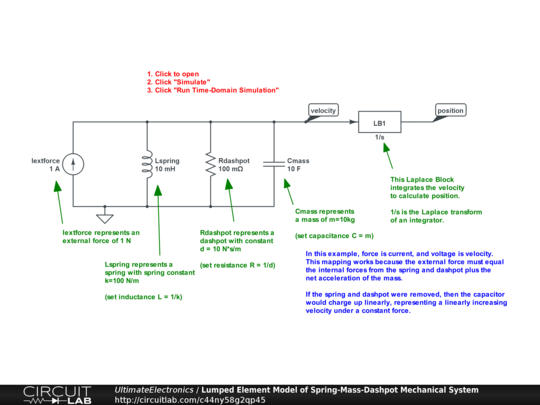

A spring-mass-dashpot mechanical system can be modeled using an inductor, capacitor, and resistor.


This example is from the Lumped Element Model chapter of Ultimate Electronics Book. It simulates a spring-mass-dashpot mechanical system using electrical components to represent each mechanical component.
